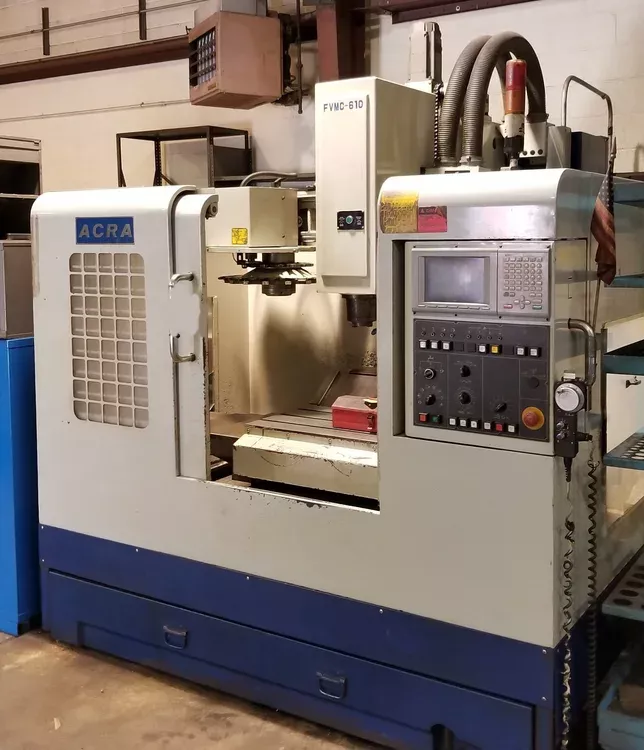

Acra FVMC 610 3 Axis

ACRA FVMC 610

Table size 32" x 18"
T-slots 3 / 0.2" width / 4.9" pitch
Max table load 660 lbs
X-axis travel 23.6"
Y-axis travel 18.9"
Z-axis travel 19"
Spindle to column distance 18.9"
Spindle to table distance 5.9" - 25.6"
Spindle taper BT40
Spindle speed 8000 RPM
Rapid feedrate X/Y 590 IPM
Rapid feedrate Z 472 IPM
Cutting feedrate 0.04 - 196 IPM
Positioning accuracy ±0.0002"/12"
Repeatability ±0.0001"
Tool changer type carousel
Tool capacity 16 tools
Max tool diameter 3.1"
Max tool length 9.8"
Max tool weight 15.4 lbs
Spindle motor 10 HP (30 min rating)
Axis motors 1.3 HP
Coolant motor 1.2 HP
Control Mitsubishi Meldas CNC
Enclosure full
Tool changer type carousel
Tool changer capacity 16
Rigid box ways
Work light
AC digital drives
Pilot lamp
Ribbed castings
Levelling bolts and pads
No table overhang
Manuals included
Toolbox included
Machine net weight 8800 lbs
Machine footprint 95" x 94" x 97"
Power requirement 15 KVA
Air requirement 80 PSI
