ADP-2590

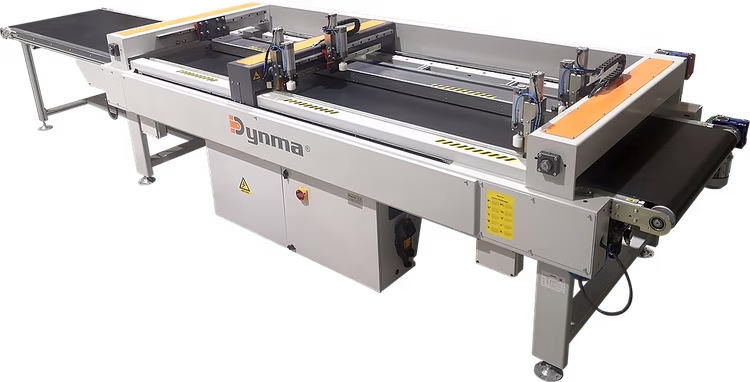

Dynma ADP-2590 Automatic Door & Frame Press
Key Features :
Fully automatic electro-mechanical pressing system
Automatic self-adjusting design
Suitable for both 45° and 90° assemblies
Touchscreen control terminal with production and alarm management
Integrated pre-assembly area
Throughfeed production configuration
CE-compliant safety design
Fixed perimeter safety guarding
Ideal for mitered doors with or without dowels, delicate profiles, and glass panel assemblies

Working Capacity :
Door Dimensions:
Maximum door length: 2480 mm
Minimum door length: 200 mm
Maximum door width: 880 mm
Minimum door width: 260 mm
Maximum door thickness: 60 mm
Minimum door thickness: 15 mm

Pressing System :
The ADP-2590 automatically adjusts to the dimensions of the door being assembled,
allowing efficient production while maintaining consistent clamping performance.
The machine is capable of handling a variety of door styles and assemblies
while maintaining dimensional accuracy throughout the pressing cycle.

Clamping Force :
Maximum lateral pressing force (Fx): 1,300 kg
Maximum frontal pressing force (Fy): 1,300 kg

Conveyor System :
PVC conveyor belt system
Conveyor width: 900 mm
Standard conveyor transport height: 900 mm
Integrated pre-assembly zone length: 2,100 mm

Electrical Specifications :
Voltage: 480V
Frequency: 60 Hz
Installed Power: 4 kW
Pneumatic Requirement: 5 Bar

Control System :
Touchscreen operator interface
Production management functionality
Alarm monitoring system
Simple and intuitive machine operation

Machine Dimensions & Weight:
Overall Dimensions:
5,875 mm × 1,870 mm × 2,000 mm
Weight: Approx. 1,700 kg (3,748 lbs)

Condition Notes :
Good operating condition
Automatic production machine
Industrial-duty construction
Recently replaced encoder
