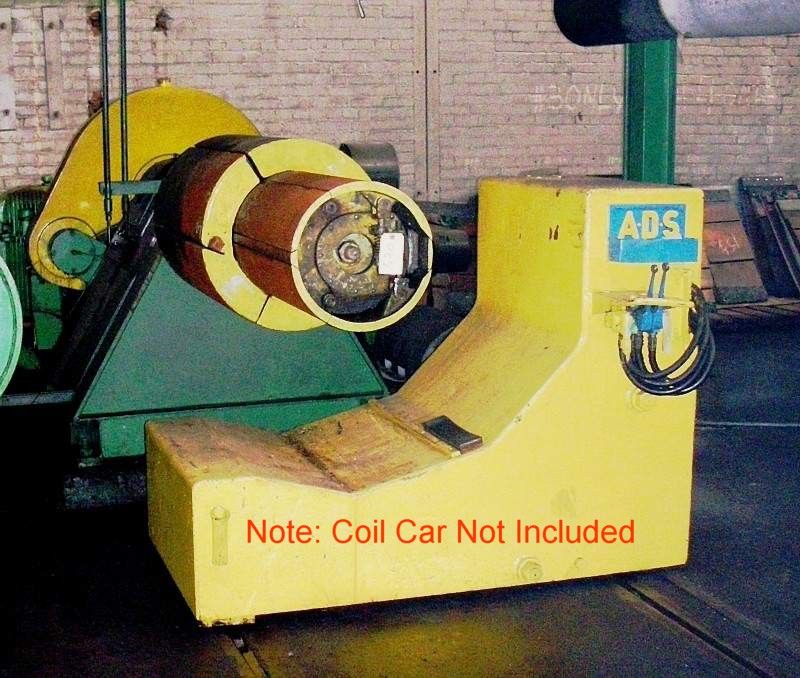

ADS Recoiler 20000 lb

Capacity: 20000 lb
Drum diameter: 16"
Drum face width: 59.5"
Passline height: 37" to drum center
Motor: 10 hp GE DC motor, 520/2000 rpm, 240 V, with blower and DC holding brake
Reducer: Cone drive R.A. reducer 15:1 ratio
Transmission: Drive All 2-speed transmission model DAF 1222 with 1:1 and 5.8:1 ratios
Overall size: 160" × 104" × 60"


Hydraulic expansion
Dual-direction material slot (no gripper)
24" diameter × 32.875" wide bolt-on pads
Reversible manual gripper for R-L or L-R line
No pushoff
