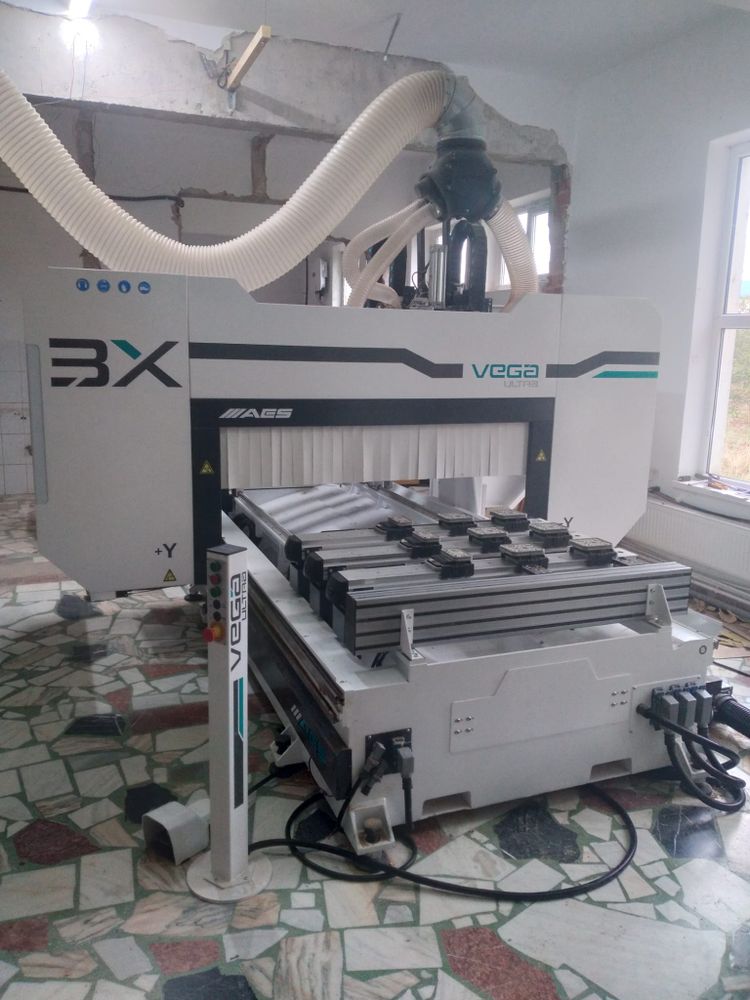

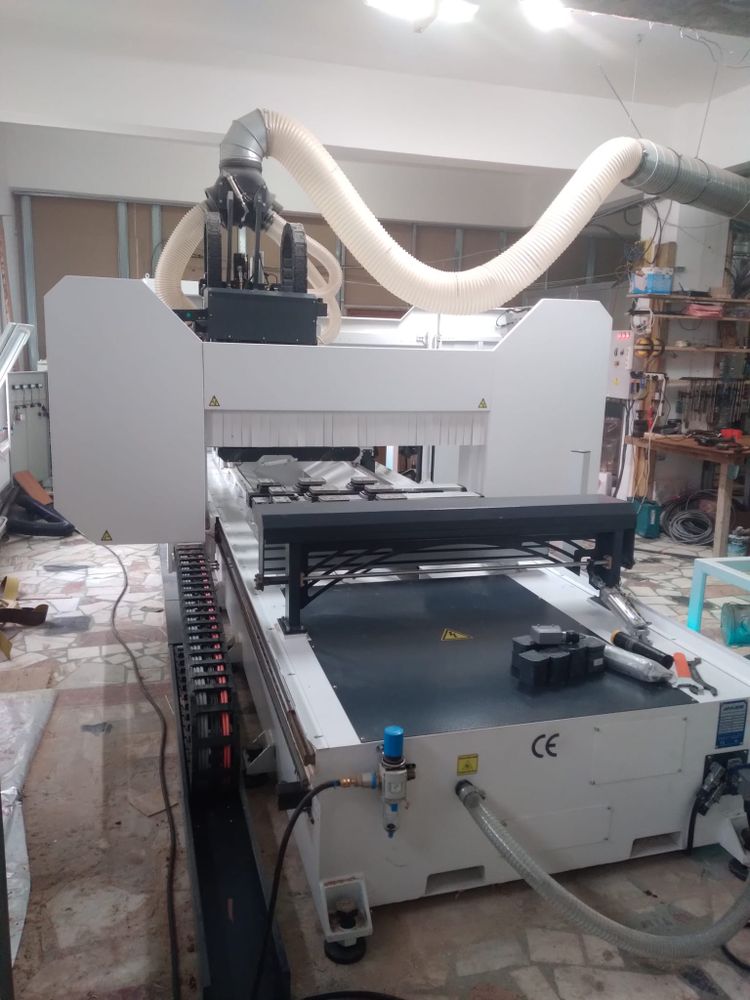

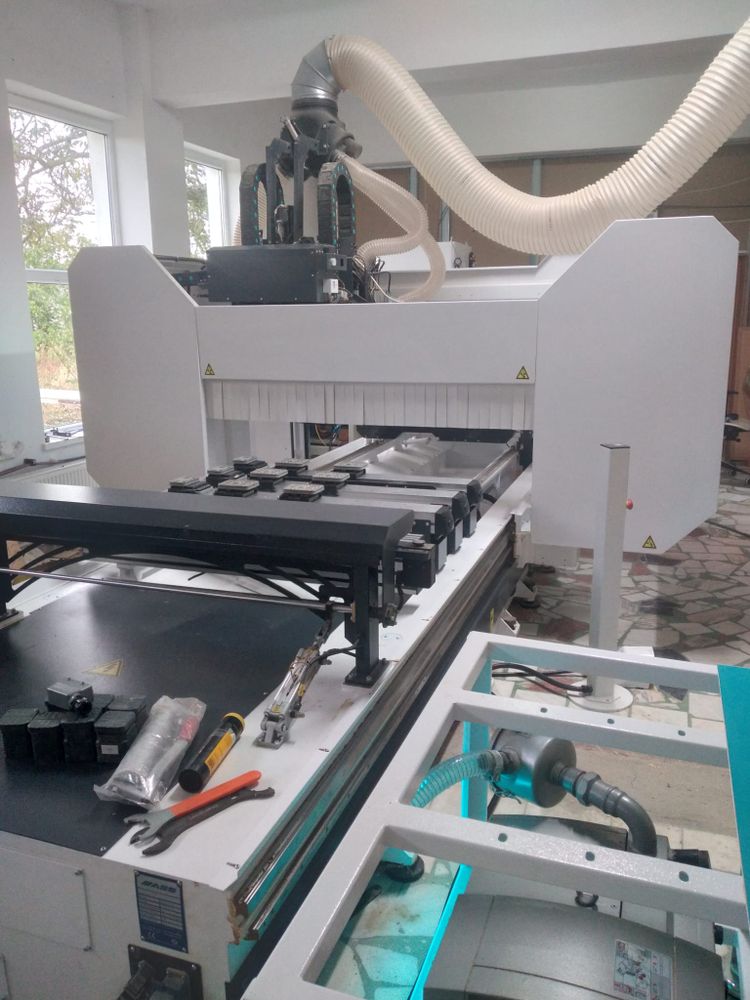

AES Vega Ultra 1332 gantry CNC machining center (pod-and-rail design) equipped with two working zones 3 axis
EUROPE (Central and Eastern)
Condition: Almost new
In addition to the main unit and the vacuum pump already included in the offer, also adding a free Airpress HK 700-300 Pro compressor as a bonus for the buyer.

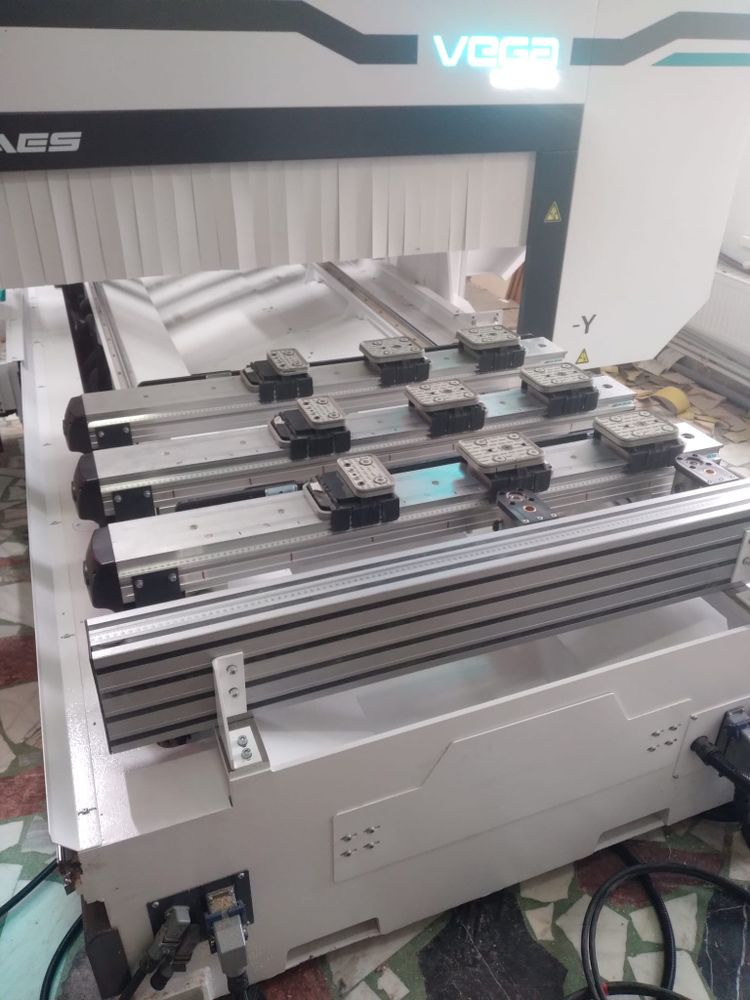

• Working area (X / Y / Z): 3200 × 1300 × 300 mm
• Rapid traverse (X / Y / Z): 100 / 100 / 20 m/min

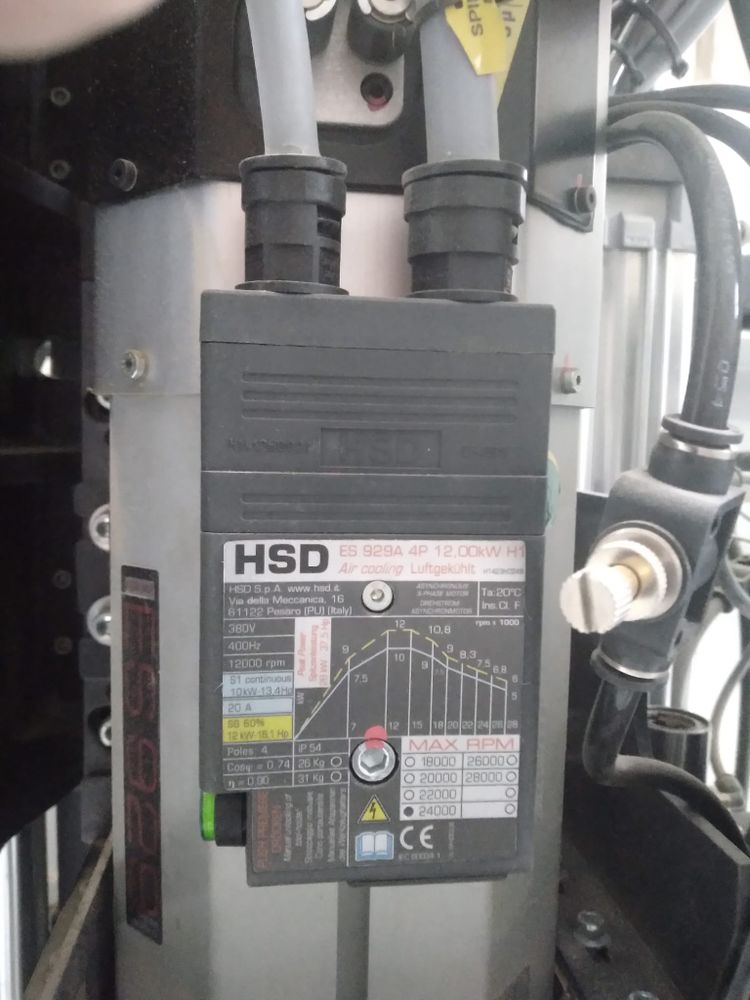

• Spindle: HSD 12 kW, air-cooled (24,000 rpm)
• Tool changer: 14-position automatic magazine, HSK-63F

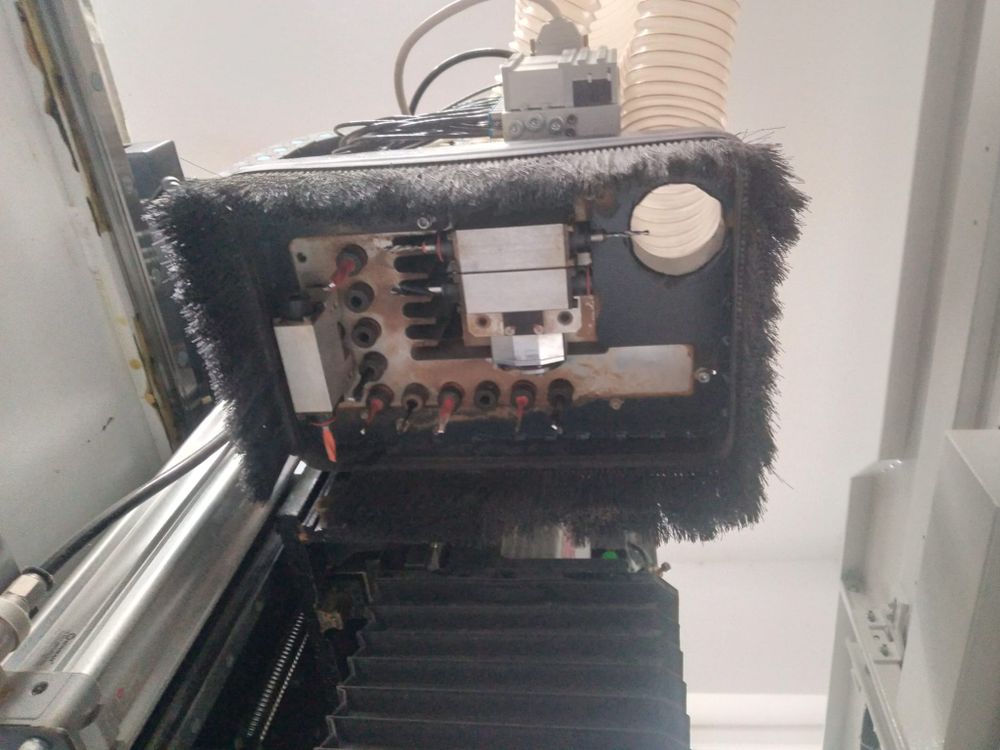

• Boring head: HSD BHZ17 (6 vertical + 4 vertical/horizontal + 2 horizontal + 1 saw blade)

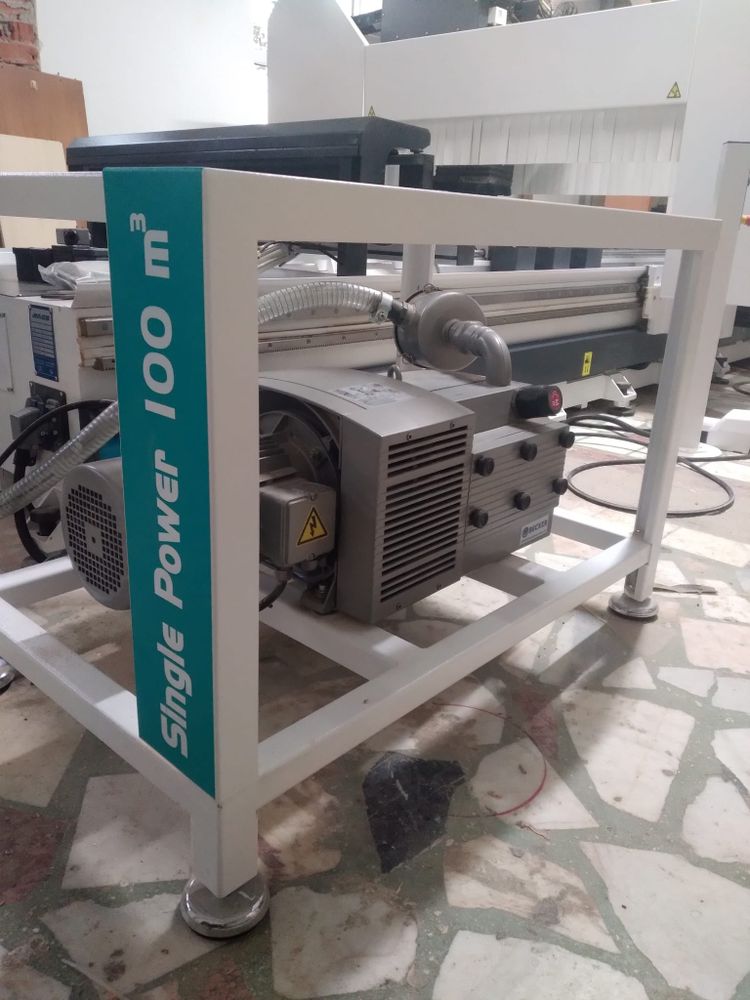

• Vacuum system: Becker KVT3100 (100 m³/h, purchased 2023)

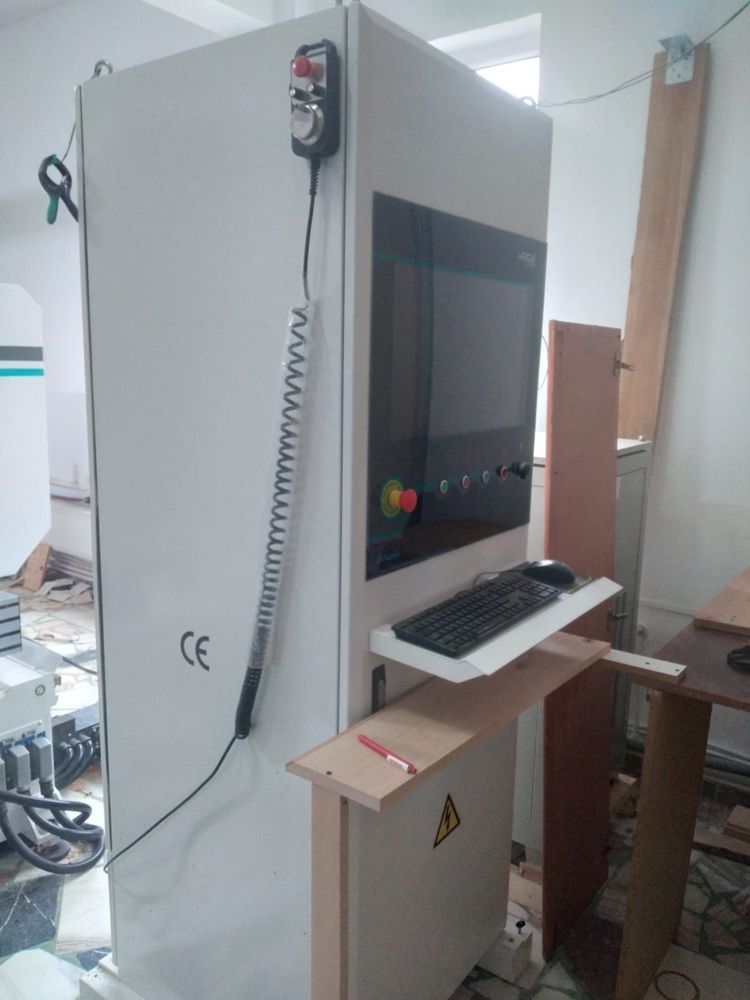

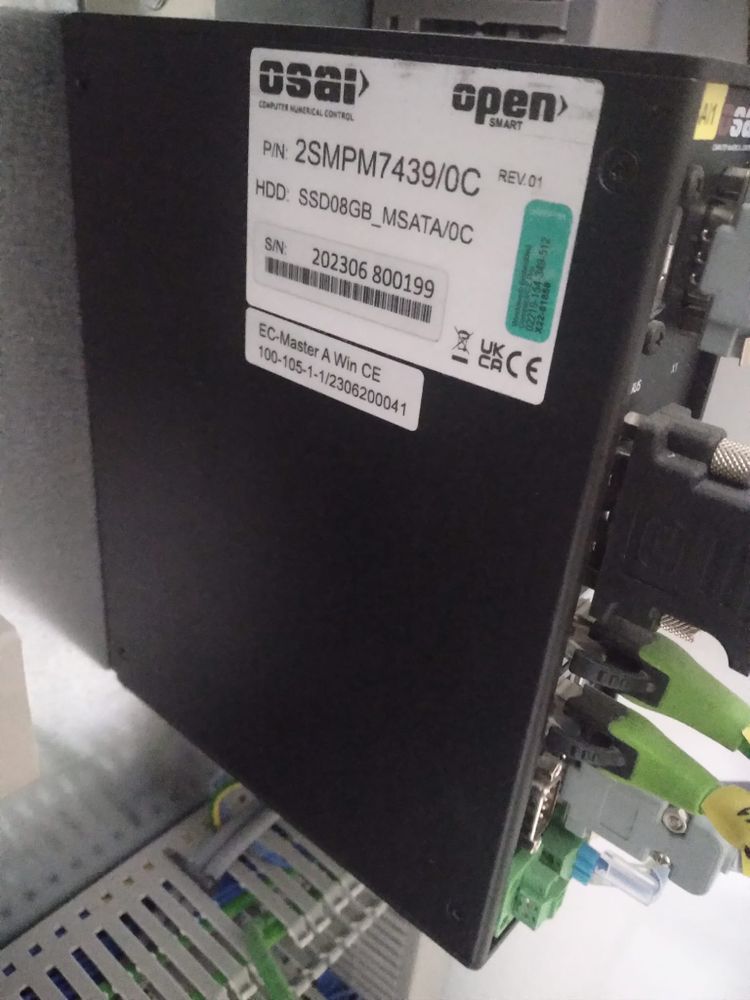

• Controller: OSAI Open Smart

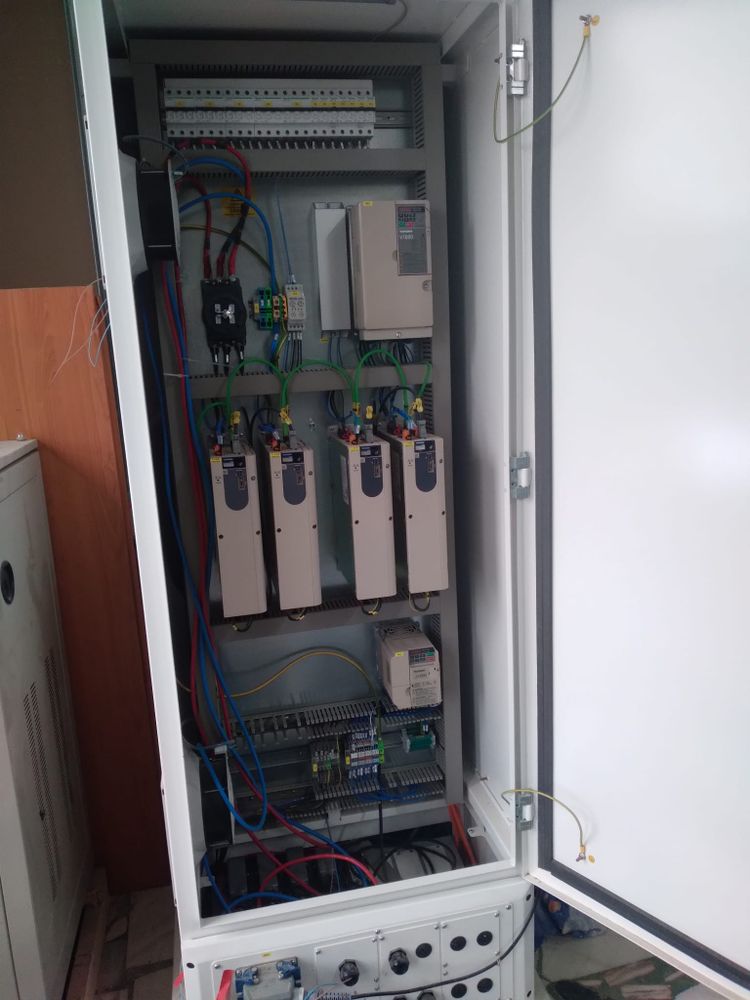

• Main components: Yaskawa motors, Güdel linear guides, Festo pneumatics, Schmalz vacuum components, HSD spindle, OSAI control
• Power supply: 400 V / 3-phase
• Nominal power: 28 kVA
• Machine dimensions (L × W × H): 5400 × 3200 × 3000 mm
• Weight: approx. 4100 kg
