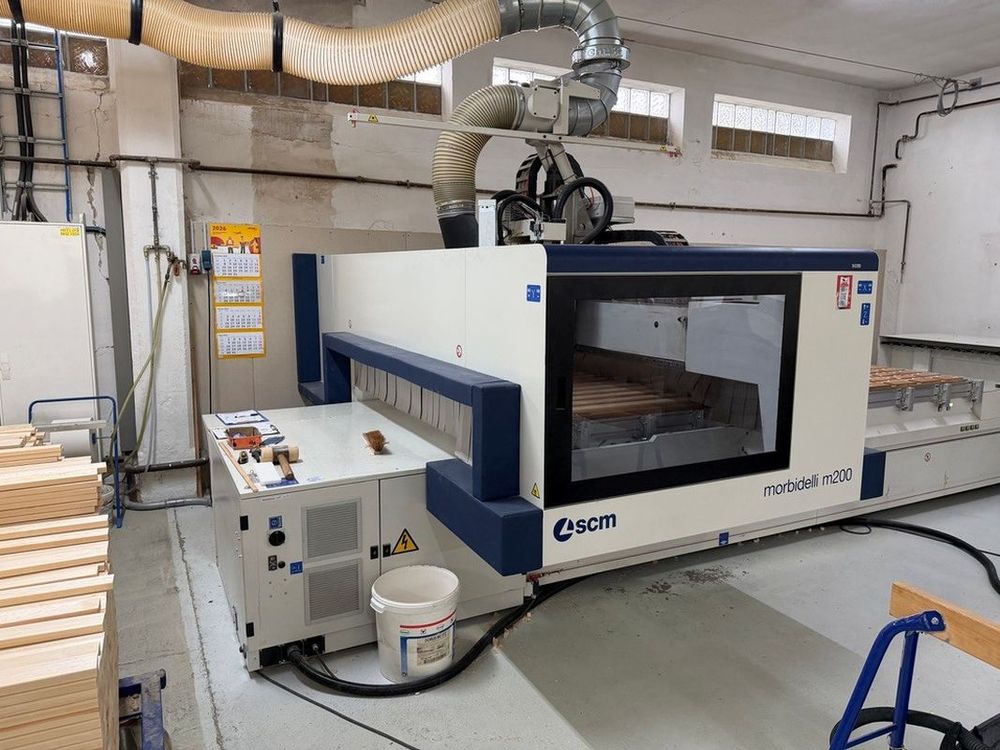

SCM Morbidelli M200F 5-axis

CNC machining center
Technical data :
X-axis working range: 3710 mm
Y-axis working range: 1620 mm
Working width: 1585 mm
Workpiece length for pendulum machining: 1700 + 1700 mm
Travel speed of the X-Y axes (PRO-SPACE): 56 m/min
Travel speed of the X-Y axes (PRO-SPEED): 78 m/min
Remote control with 7" touchscreen display

TRB14 tool changer with pneumatic remote adjustment
- Max. 14 tools
- Max. tool diameter: 300 mm (3-axis), 350 mm (5-axis)

FAST14 tool changer
- Max. 14 tools
- Tool diameter: 180 mm
- Axis spacing: 7 positions with 110 mm spacing, 7 positions with 130 mm spacing

Blow-off nozzle system on the electric spindle

5-axis Prisma 5 electric spindle, “KS” version
- HSK 63F
- Rotational speed: 1,800 - 24,000 rpm
- Power (S1/S6): 11/12 kW at 15,000 rpm
- Clockwise and counterclockwise rotation programmable via NS
- Coolant circulation system

High-performance vacuum pump 300/360 m3/h, 50/60 Hz
Work table divided into 8 vacuum zones
Laser system for positioning the suction cups
eye-M PRO console with integrated PC
Maestro CNC software
