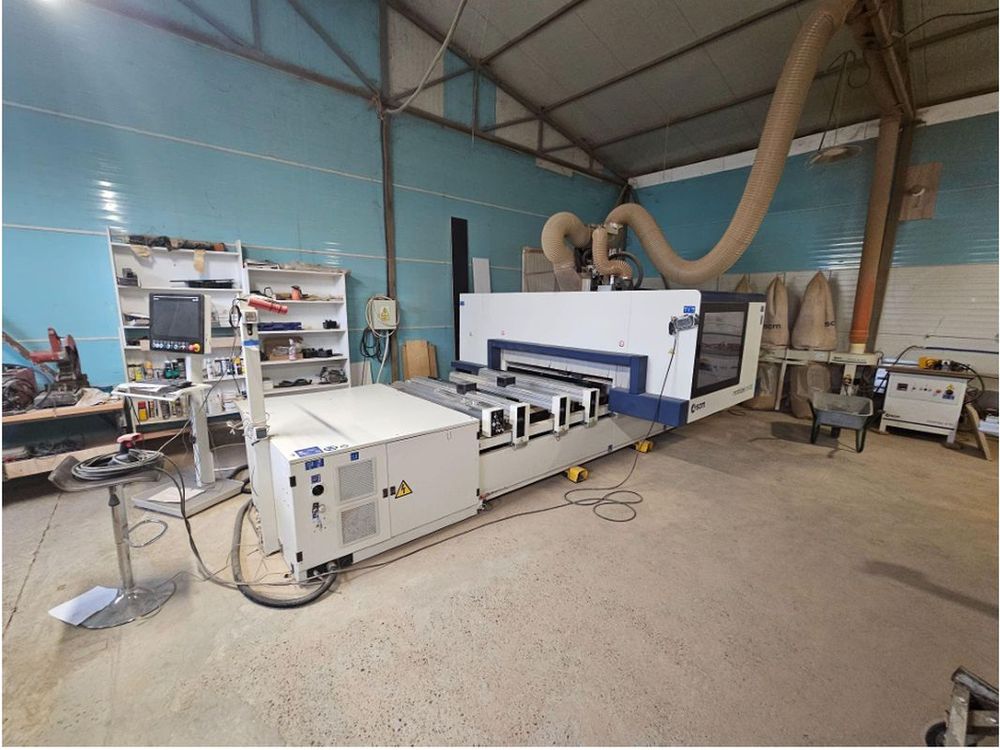

SCM Morbidelli M100 5-Axis

CNC machining center
Technical data :
Working Area and Workpiece Capacity
X-axis travel: 3,110 mm
Y-axis travel: 1,620 mm
Y-axis workpiece clearance: 1,900 mm
Z-axis workpiece clearance: 180 mm
Workpiece length in pendulum mode: 1,400 mm
Table Configuration: TV FLEX 1600 / FLEXMATIC
Number of Cross Beams: 6
Cross Beam Positions: 6 to 12 positions

Axis Speeds and Drive Data
Maximum Vector Speed X/Y (PRO-SPACE): 56 m/min
Maximum vector speed X/Y (PRO-SPEED): 78 m/min
Speed of vertical drilling spindles: up to 8,000 rpm
Speed of horizontal drilling spindles: up to 8,000 rpm
Max. speed of main spindle: 24,000 rpm
Speed of grooving unit/circular saw: frequency-controlled, approx. 2,500-8,000 rpm

CNC Control and Software
Operating system: Windows 7
Display: 21.5" Full-HD LCD (16:9)
Controls: Keyboard, mouse, and machine control panel
Software: Maestro CNC
Programming: Parametric programming, graphical programming, ISO code, DXF import
Machining functions: Milling, drilling, tool management, machining programs
Simulation: Graphical simulation of drilling and milling operations
TECPAD: 7" touch panel for machine functions and error messages
Mobile operation: Portable control panel for operating the machine from along its length

F23L Drilling and Grooving Unit
Vertical drilling spindles: 13 independent spindles (7 clockwise, 6 counterclockwise)
Horizontal drilling spindles: 10 independent spindles
Horizontal spindle arrangement: 4 spindles in the X direction on one side,
3 spindles in the X direction on the opposite side, 2 spindles in the Y direction
Integrated sawing unit: Grooving and circular saw unit in the X direction
Saw blade diameter: 125 mm
Saw unit motor power: 2.2 kW (approx. 3 PS)
Vertical drilling unit stroke: 75 mm pneumatic stroke
Horizontal drilling unit stroke: 75 mm pneumatic stroke
Frequency converter: Programmable speed control up to 8,000 rpm

5-Axis Milling Unit and Tool Change System
Main unit: JQX 5-axis milling unit
Spindle type: Hiteco HSK-F63 electric spindle
Power: 10 kW rated power
Peak power (S6): approx. 9.5-15 kW
Maximum speed: 24,000 rpm
Bearings: Ceramic bearings
Cooling: Liquid-cooled spindle
Lubrication: Centralized automatic lubrication system

Rear tool magazine TRB 14
Magazine slots: 14
Travel distance: 350 mm
Pitch: 115 mm
Max. tool diameter: 240 mm
Max. total tool weight: 70 kg

Front tool magazine FAST 14
Magazine slots: 14
Max. tool diameter: 130 mm
Max. tool weight per slot: 8 kg
Max. total weight: 24 kg

Vacuum System, Workpiece Clamping, and Positioning
Vacuum cups: 12, permanently mounted
Vacuum cup dimensions: 145 × 145 mm
Vacuum cup height: 75 mm
Vacuum pump: 1 vacuum pump as standard
Additional vacuum pump: 90 m3/h
Workpiece supports: 4 pneumatic workpiece supports
Rear stops: 8 aluminum stops
Intermediate stops: 8 aluminum stops
Side stop: Left reference stop with laser positioning
Clamping cylinder preparation: Prepared for 6 pneumatic clamping cylinders

Exhaust and Compressed Air
Connected load: 23 + 28.5 kVA
Compressed air consumption: 450 Nl/min
Required extraction capacity: 4,500 m3/h
Air velocity in the extraction system: 25 m/s
Extraction connection: Ø 250 mm
