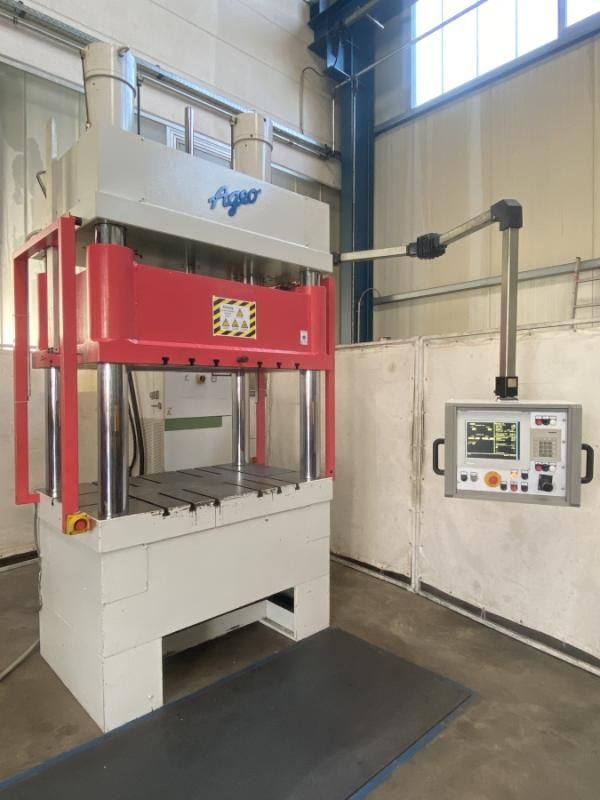

Ageo GHP 200 H6 200 ton

Press force 200 ton
Frame opening front 1200 mm
Frame passage side 650 mm
Table size 1560 × 1010 mm
Ram area 1560 × 1010 mm
Ram stroke 575 mm
Cushion stroke 300 mm
Cushion holding force 63 ton
Cushion ejector force 30 ton
Max. die height 775 mm
Table height above floor 1000 mm
Guide column diameter 140 mm
Ram clamping hole diameter 64 mm
Press speed 0–10 mm/s stepless
Return speed 0–20 mm/s stepless
Main motor power 22 kW
Control pump motor power 5.5 kW
Power supply 400 V, 50 Hz
Table and ram with 22 mm T-slots
Two pressure cylinders with electronic precision synchronization control
Infinitely variable electrical stroke limitation (top/bottom with digital measurement and position display)
Mechanical safety support against ram drop
One-hand and two-hand operation
Electrical tool safety via signal contact
Pressure preset independent of stroke (keyboard input, digital pressure display)
Position measuring system left/right via rotary encoder
Electrical control MS-DOS PC with Ageo H v2.23 software
Swiveling control panel with monitor
Ram movement and press speed controllable via joystick
Hydraulic unit with electrical cabinet (separate)
Hydraulic cushion under press table
Cushion with ejector function
Continuous stroke control
Floor-level installation
Electrical oil temperature monitoring
Operating manual with circuit diagrams
Machine footprint (standing) L×W×H 1800 × 1010 × 3470 mm
Transport footprint (lying) L×W×H 3500 × 1800 × 1200 mm
Machine weight 13 ton
Hydraulic unit footprint L×W×H 1000 × 800 × 3040 mm
Hydraulic unit weight approx. 1 ton
Used as tool try-out press
Very good condition
