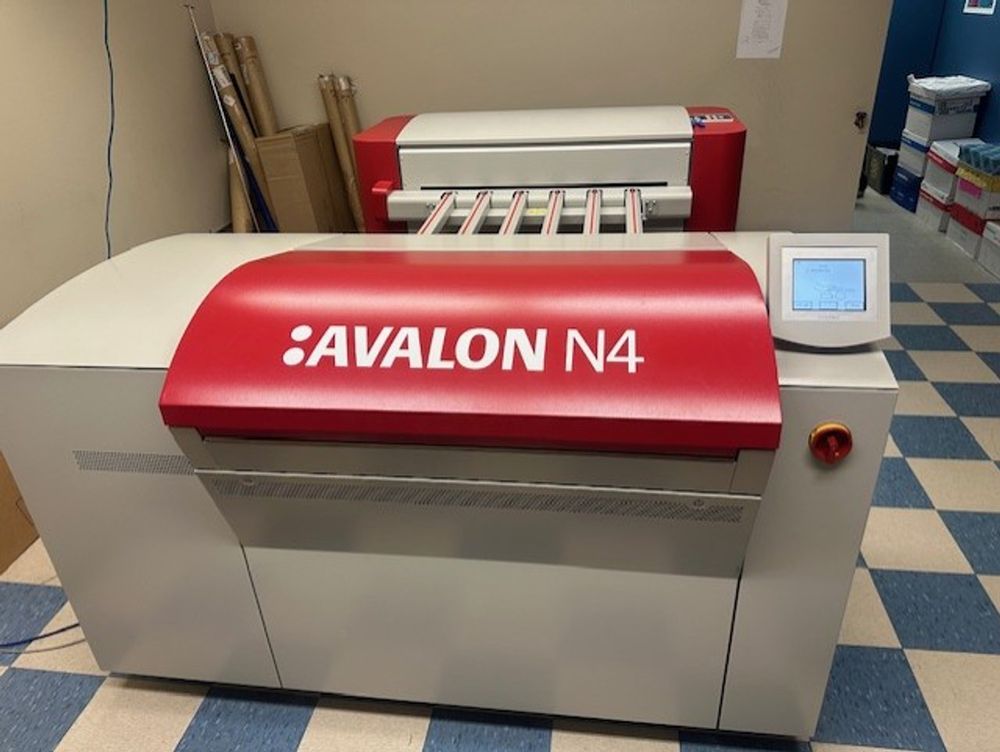

Agfa Avalon N4
AMERICA North (USA-Canada-Mexico)
This CTP has only 37,000 plates made on it and the hours of operation very low for year.
Comes complete as shown Apogee rip and imposition
Imaging technology 16-channel laser diodes
Laser type 830 nm thermal laser diodes
Recording system External drum
Press punch yes, max 6 units
Resolution
1200 dpi yes
2400 dpi yes
2438 dpi yes
2540 dpi yes
Throughput
Throughput pph (745 mm x 605 mm, 2400 dpi) 11
Plate loading & unloading configuration
Plate characteristics:
Min. plate size (along drum x around drum) 324 mm x 330 mm (12.8" x 13.0")
270 x 278 mm (10.7 x 10.9") optional
324 x 278 mm (12.8 x 10.9'') optional
Max. plate size (along drum x around drum) 830 mm x 660 mm (32.7” x 26”)
Thickness 0.15 mm-0.3 mm (6-12 mil)
Max. exposure size (around drum x along drum) 830 mm x 636 mm (32.7" x 25")
