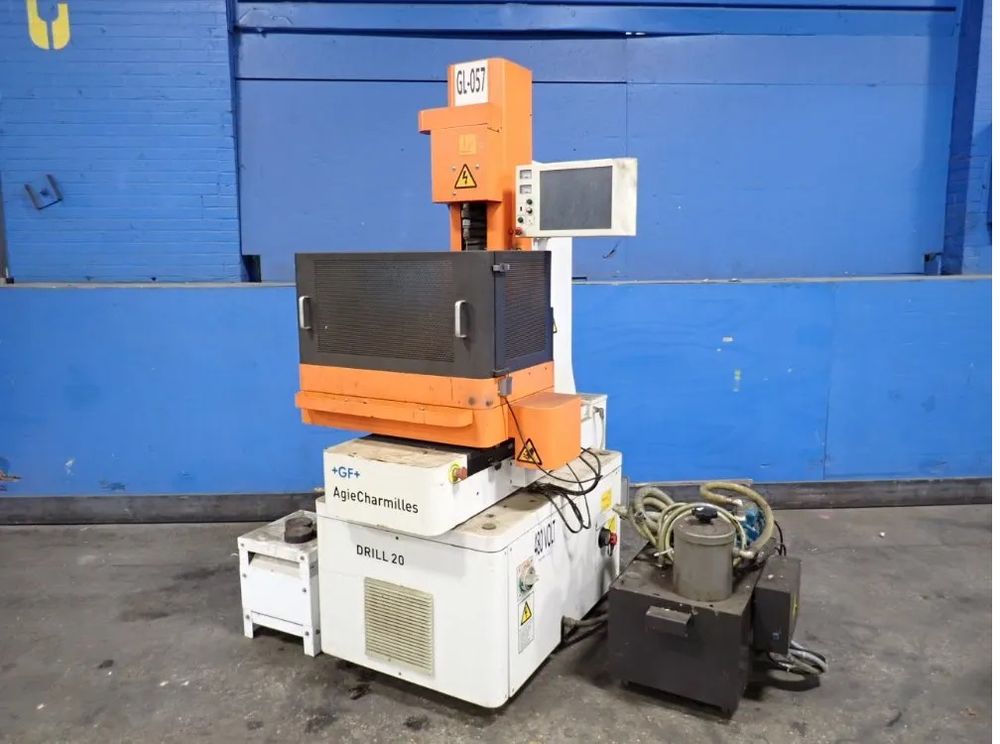

Agie Charmilles DRILL 20

AGIE-CHARMILLES DRILL 20
2010

Electrode diameter range 0.1 to 3 mm
Electrode diameter range 0.004" to 0.12"
Maximum drilling depth 200 mm
Maximum drilling depth 7.78"
Maximum workpiece weight 300 kg
Maximum workpiece weight 660 lbs
Axis travel X 300 mm
Axis travel Y 200 mm
Axis travel Z 300 mm
Axis travel X 11.8"
Axis travel Y 7.8"
Axis travel Z 11.8"
Work table size 400 mm x 300 mm
Work table size 15.7" x 11.8"
Electrode guide travel 100 mm
Electrode guide travel 3.9"
Generator capacity 30 amps
Dielectric volume 20 liters
Dielectric volume 5.3 gallons
Electrical connection 380V / 3Ph / 60Hz
Maximum power consumption 4 kVA
Touchscreen display 12.1"
Pump operating pressure 70 bar
Machine dimensions 1340 x 900 x 1940 mm
Machine dimensions 52.7" x 35.4" x 76.4"
Machine weight 875 kg
Machine weight 1925 lbs
Rotating spindle integrated
CNC-controlled motorized axes X/Y/Z
Cast iron open-front frame
Automatic and manual axis movement
Four selectable axis speeds
Edge finding functions
Corner finding functions
Erosion parameter display
Erosion status display
Erosion time display
Technology parameter optimization
Multi-hole drilling capability
ISO and TXT data import
Job creation, editing, deletion
Data transfer via LAN and USB
Single and multi-hole patterns
Rectangular and circular array patterns
Automatic technology selection
Graphical control and simulation
Onboard operating manual
Multi-hole support with multi-technology
Equipped with transformer
