Agie Charmilles DRILL 300
Ref :
2716018-3-CP
Condition :
Used
Manufacturer :
Agie Charmilles
Model :
DRILL 300
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)

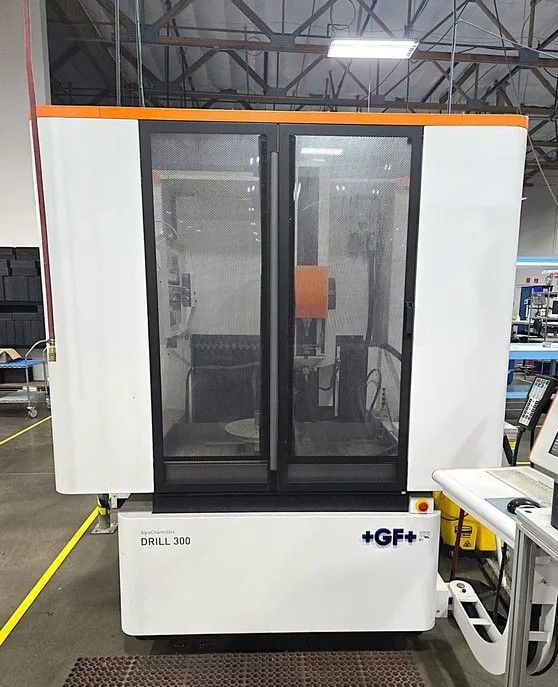

Agie-Charmilles DRILL 300
NEW: 2015
SPECIFICATIONS:
ELECTRODE DIAMETER (MIN):....... 0.012"
ELECTRODE DIAMETER (MAX):....... 0.118"
WORK WIDTH:..................... 13.78"
WORK LENGTH:.................... 12.6"
X-AXIS TRAVEL:.................. 23.6"
Y-AXIS TRAVEL:.................. 15.8"
Z-AXIS TRAVEL:.................. 17.72"
MAX WORKPIECE WEIGHT:........... 55 LB
DIMENSIONS:..................... 91.35" X 74.8" X 85.84"H
WEIGHT:......................... 5,512 LBS
EQUIPPED WITH:
MACHINE HAS TILTING HEAD CAPABILITY AND ROTARY TABLE
TILTING HEAD CAPABLE: +/- 100 DEG / 0 - 360 DEG
20POSITION ELECTRODE CHANGER
