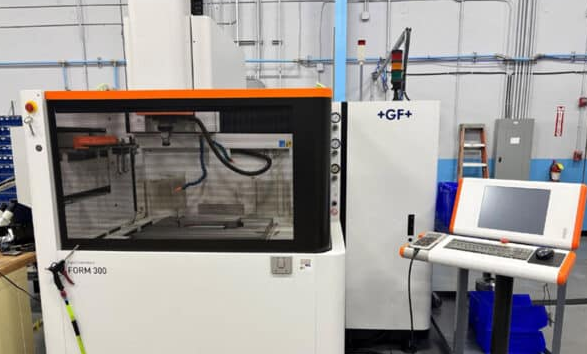

Agie Charmilles Form 300 EDM

X-Axis Travel 23.62 in
Y-Axis Travel 15.75 in
Z-Axis Travel 17.72 in
Table Size X 29.53 in
Table Size Y 23.62 in
Traversing Speed X/Y 19.7 ft/min
Traversing Speed Z 32.8 ft/min
X/Y/Z Axes Display Resolution 0.000002 in
Permissible Workpiece Weight 3,527 lbs
Internal Tank Dimensions W 47.2 in
Internal Tank Dimensions D 31.8 in
Internal Tank Dimensions H 18.50 in
Programmable Tank Level 0 – 17.72 in
Distance Table to Quill min 3.94 in
Distance Table to Quill max 17.72 in
Accura C-Axis Accuracy
Accura C-Axis Rotation Speed 0 – 100 rpm
Max Current Load Accura C-Axis Static 104 amps
Max Current Load Accura C-Axis Rotating 80 amps
Maximum Flushing Pressure C-Axis 1.5 bar
Permissible Electrode Weight with Chuck 110 lbs
Permissible Electrode Weight without Chuck 220 lbs
Max Allowable Tool Weight Toolchanger 11 lbs per position
Dielectric Capacity 184 gallons
Number of Dielectric Filters 6 paper cartridges
Generator ISPG
Peak Amperage 80 amps
Surface Integrity No white layer
Surface Finish Down to 0.08 Ra μm
Control New AC FORM HMI
Communication Ethernet RJ45
Machine Dimensions X 89.17 in
Machine Dimensions Y 83.07 in
Machine Dimensions Z 109 in
Machine Weight 9,920 lbs

Features/Options/Equipment:
New AC FORM HMI Control
6-Tool Changer
System 3R Type Holders
No Chiller
