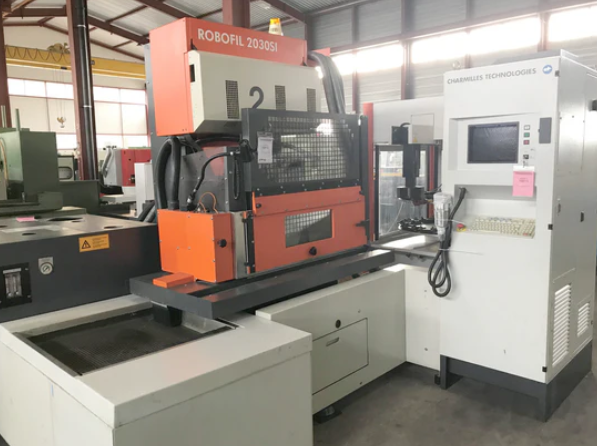

Agie Charmilles ROBOFIL 2030 SI

Control: CHARMILLES
Automatic wire threading
Clamping set: 3 pcs
EROWA pallet changer
30 pallet positions
3 workpiece holders
X-axis travel: 318 mm
Y-axis travel: 218 mm
Z-axis travel: 114 mm
U-axis travel: ±48 mm
V-axis travel: ±48 mm
U/V axis travel: 48 mm
Taper cutting: ±30/65°
Table size: 560 × 440 mm
Maximum workpiece size: 1,130 × 510 × 260 mm
Maximum table load: 500 kg
Wire diameter: from 0.1 mm
Wire feed: up to 15 m/min
Maximum wire spool weight: 16 kg
Maximum cutting capacity: 300 mm2/min
Dielectric tank capacity: 240 l
Power supply: 380 V, 50 Hz
Total power: 12 kVA
Machine dimensions: 3,700 × 2,600 × 2,300 mm
Machine weight: 4,500 kg
