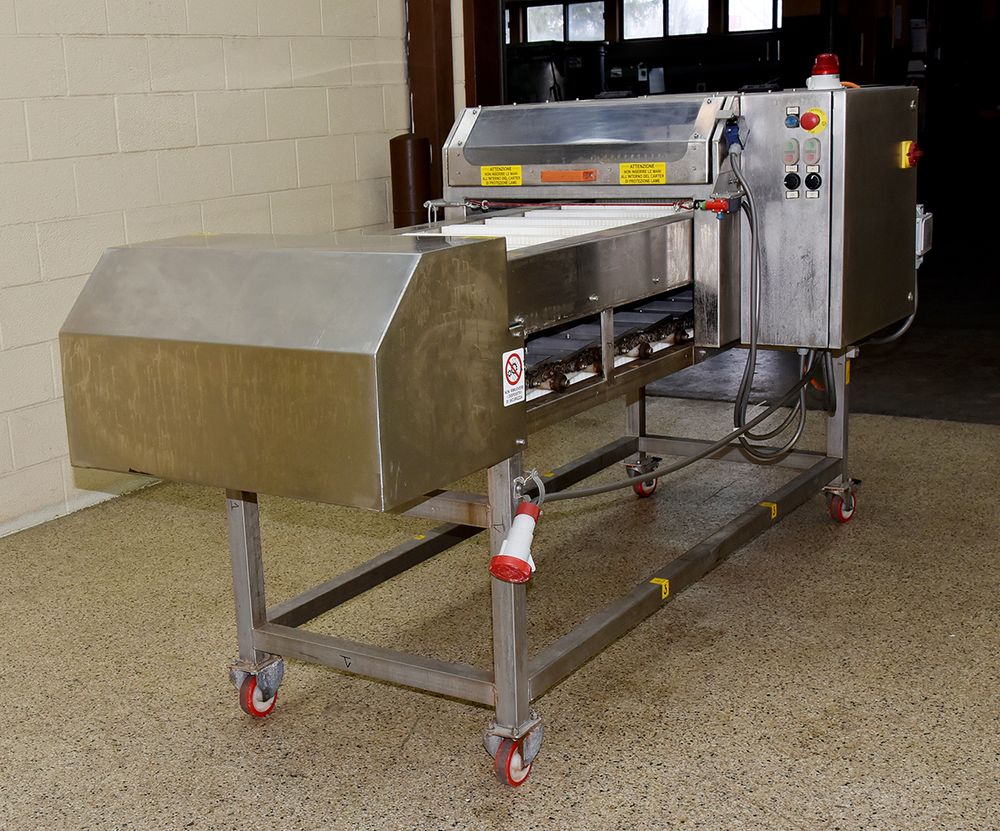

Agrimat BELT SLICER, FRUIT STRIP CUTTER

Agrimat
Continuous, food grade sanitary, stainless steel

FEATURES:
• Continuous operation for high-capacity production.
• 9 foot long by 18 inches wide carrier belt, running between 2 inch high stainless steel sides.
• The belt consists of a continuous series of UHMW plastic carriers which are grooved to let the blades pass through them as the belt carries the product through the blades.
o Each carrier has a 5.75 inch long by 16 inch wide pocket for product to be placed between two inch high cleats.
o In the middle of each carrier is a 3/4 inch non-slotted spacer which effectively separates the carriers / belt into two lanes (unless you want to cut 3/4 inch all the way across).
• Blades are fixed, but can be added or removed on 3/8 inch spacings for strip cuts of 3/8 inch, or 3/4 inch, or 1.5 inch, and so on.
• If belt fed, 43 inch infeed height from the end, or if hand-fed 42 inch infeed height from the sides; on 5 inch high casters (two locking).
• Hinged knife cover for ease of sanitation and maintenance (wired to safety interlock system, cuts power to the machine if the cover is opened).
• Food grade stainless steel construction.
• Stainless steel control box with variable speed control, E-stop button, safety interlock system, cable pull E-stop over the belt, along with a beacon on the top of the control panel to signal a stoppage.
• Aluminum shrouded motor, with aluminum shrouded gear reducer.
• 208 / 230 volt 3 phase electrical input.
