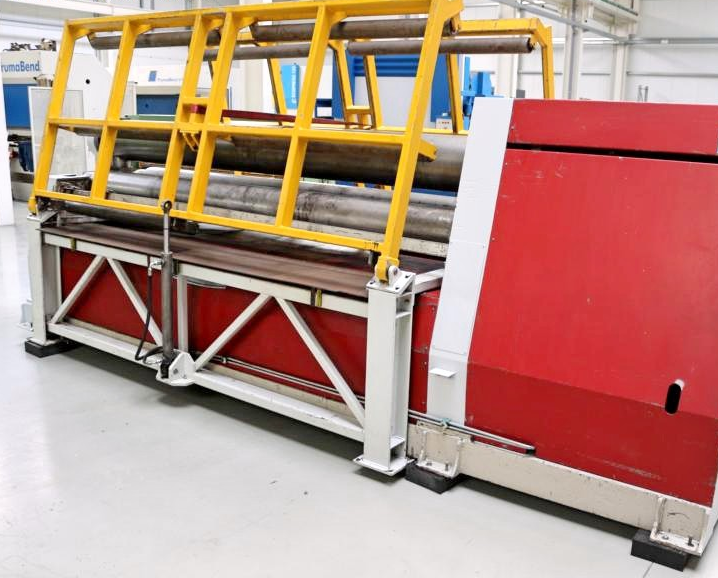

AK Bend AHK Y 300 x 3100

AK BEND AHK Y 300 x 3100
Year of Manufacture: 2007

Sheet width: 3100 mm
Plate thickness (standard steel): 13.0 mm
Pre-bending capacity (standard steel): 10.0 mm
Upper roll diameter: 300 mm
Side roll diameter: 270 mm
Bending speed: 4.5 m/min
Voltage: 415 V
Total power requirement: 11.0 kW
Machine weight: 8200 kg
Machine dimensions (L x W x H): 5090 x 1620 x 1630 mm

Features:
Robust electro-hydraulic 3-roll bending machine
Induction-hardened rolls
Heavy-duty welded machine frame
SIEMENS ELGO digital position indicator for side rolls
Freely movable control panel
Curved side roll feed system
Electro-hydraulic conical bending device
Electro-hydraulic safety chuck
Roll pressure gauge/indicator
Operating manual (PDF)

Special equipment:
2x AK BEND side supports (lateral sheet support system)
Bending rolls with profile roll extension
Various profile rolls included
