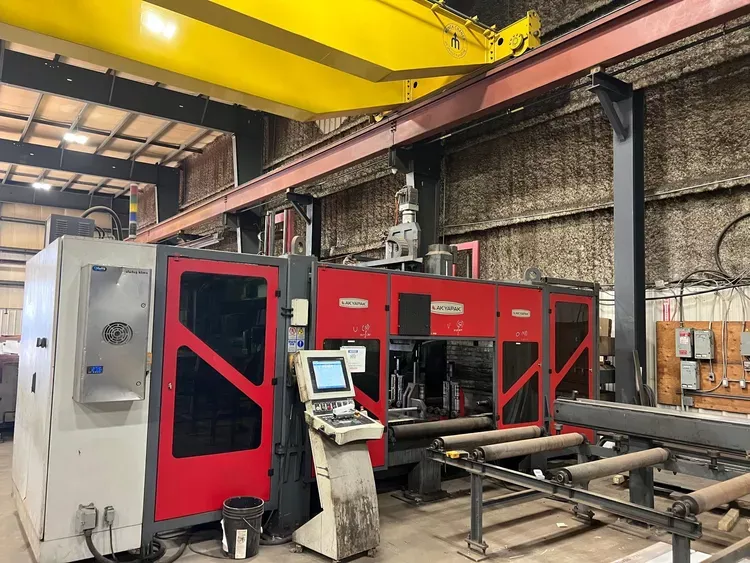

Akyapak 3ADM 1200 3000 rpm stepless

Infeed Conveyor Length 12 m
Outfeed Conveyor Length 12 m
Controller Mitsubishi C70 CNC
Operating Range Min 200 x 80 mm
Operating Range Max 1200 x 500 mm
Drilling Units 3
Spindle Positioning / Returning Speed 15 m/min
Machine Weight 13000 kg
Drill Diameter 10 – 40 mm (Carbide and U-drill)
Drill Diameter 40 – 50 mm (U-drill only)
Thread Tapping M12 – M24
Drill Holder BT40
Spindle Speed 50 – 3000 rpm stepless
Spindle Power 22 kW
Spindle Torque 280 Nm
Tool Changer 3 x 4
Weight per Linear Meter 60 kg/m
Total Power 80 kW
RPM 3,000 RPM
Control CNC (Mitsubishi)
Dimensions 6880 x 2250 x 3450 mm
Weight 13300 kg
Central Lubrication System
Tool Cooling
AC Cooling for Electrical Panel
Auto Tool Changer
Mobile Pedestal Style Control Panel
Lantek Flex 3D Steel Work
Feeding Arm Long Enough to Reach Bandsaw – Behringer Double Mitre Bandsaw
Chip Conveyor
Tool and Material Management
Remote Control
3 Tools (1 per Spindle)
1 Air Driven Marking Tool
