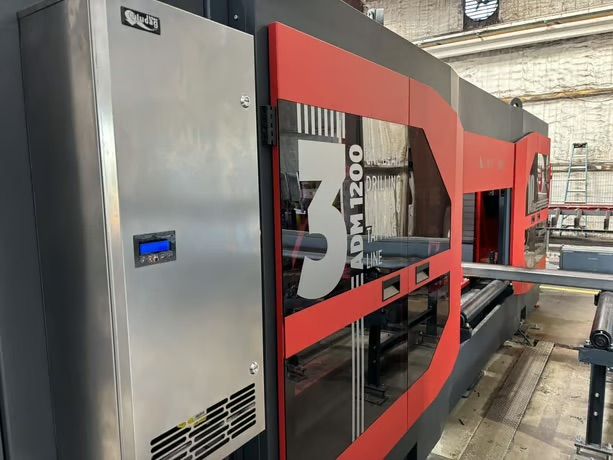

Akyapak 3ADM-1200 Cutting speed: 65 – 328 ft/min

X axis travel: 57"
Y axis travel: 20"
Z axis travel: 36"
Horizontal spindle X axis travel: 20"
Horizontal spindle Y axis travel: 21"
Horizontal spindle Z axis travel: 28"

Siemens touch-screen control
Automatic tool measurement
Automatic material measurement
Underscribe scribing station
Chip conveyor
Oil cooler

Minimum beam size: 8" x 3.15"
Maximum beam size: 48" x 20"
Material types: beam, channel, tube, angle, plate

Number of drill heads: 3
ATC capacity: 4 tools per spindle
Total ATC tools: 12
Tool station capacity: 17.64 lbs
Drill diameter: 3/8" – 1-1/2"
Thread tapping: M10 – M24
Drilling thickness: 0.2" – 3.94"
Tool holder: BT40
Spindle speed: 50 – 3,000 RPM

Capabilities: drilling
Capabilities: milling
Capabilities: tapping
Capabilities: countersinking
Capabilities: layout marking

AST 1300 horizontal bandsaw
Main saw motor: 20 HP
Mitering servo motor: 2.0 HP
Chip brush motor: 0.16 HP
Hydraulic pump motor: 7.4 HP
Blade length: 32.8'
Working height: 31.5"
Mitering angle: +60° / -60°
Maximum sawing capacity: 51" x 23"
Minimum sawing capacity: 2.56" x 1.77"
Upper pressure cylinders for batch cutting

60' infeed and outfeed
Transfer tables
