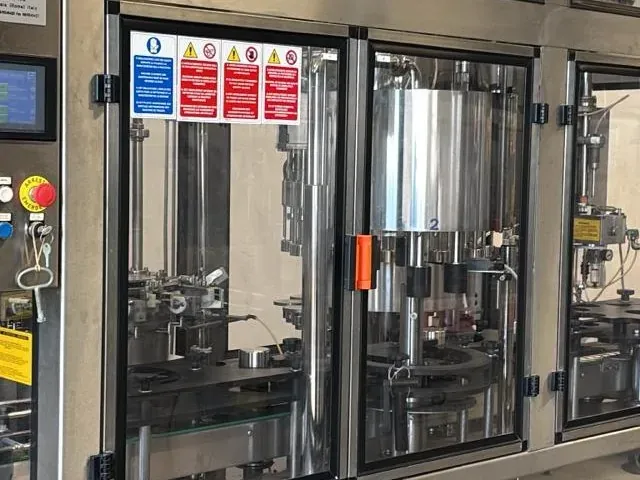

Alfatek TBS 12/4/12/1 LP

Bottling line for still wine

Product: still wine
Speed: 2,000 bph
Alfatek monoblock
For glass bottles
Direction of rotation: clockwise
Rinser with 12 fixed-nozzle clamps
– Carousel height adjustment: automatic (via display)
– Treatment: water
– Recycling tank
Deox station with 4 valves: removes oxygen and injects nitrogen
Low-pressure filler with 12 mechanical valves
– Manual tank height adjustment
Single-head corker for straight cork
– Head adjustment: manual
– Vacuum system before corking
Tardito washer/dryer
Model: RL 20
Year: 2006
1 carousel and 8 heads
Air drying
Drying system type: air knives
Enos capsule applicator
Model: 2T capsule applicator
Year: 2005
2 heads
PVC and polylaminate
Plateau-style capsule magazine
Max speed with PVC: 3.000 bph
Head adjustment: manual
Cavagnino & Gatti labeller
Model: CG80/1/2XPS
Year: 2006
Clockwise rotary
4 mechanical cam plates with maltese crosses
2 adhesive stations: front and back
1 glue station for neck labels
Head adjustment: manual
Manual glue film adjustment system
Safety protections
