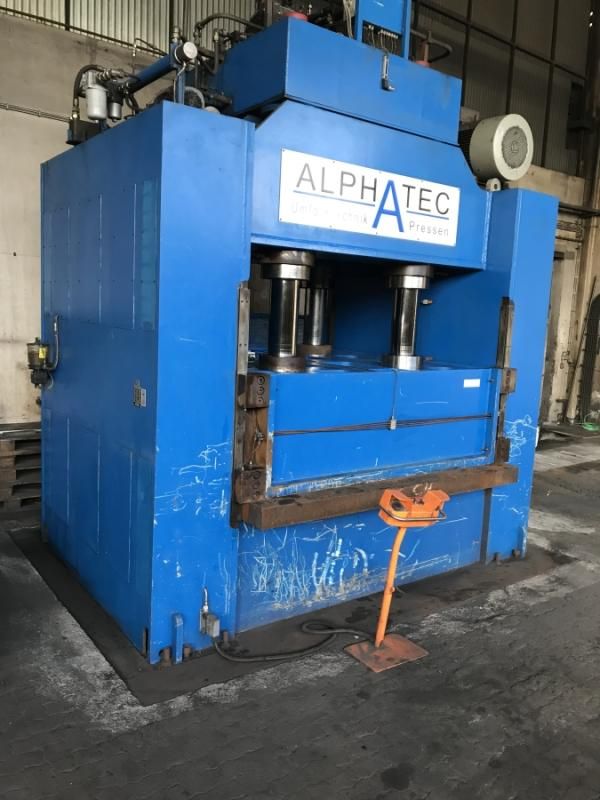

Alpha TEC RPS 5000 500 ton

Press force 500 ton
Frame opening front/rear 2520 mm
Table size 2500 × 2500 mm
Ram area 2500 × 2500 mm
Ram stroke 600 mm
Max. die height 600 mm
Table height above floor approx. 900 mm
Tank capacity approx. 1000 liters
Ram return force approx. 22 ton
Approach speed adjustable 100–800 mm/s
Pressure build-up to 5000 kN approx. 0.7 sec
Return speed approx. 300 mm/s
Main motor power 75 kW
Control pump motor power 2.2 kW
Power supply 400 V, 50 Hz
8-way flat guide for ram
Hydraulic ram locking at top dead center
Electrical control SIEMENS SPS S7-314
Operation via SIEMENS OP 170-B (5.7")
Two-hand control console
Ground-level installation
Table plate 2510 × 2530 × 135 mm (approx. 6700 kg)
Central lubrication
Operating manual with wiring diagrams
Machine footprint L×W×H 372 × 260 × 460 cm
Transport footprint (lying) L×W×H 460 × 372 × 260 cm
Machine weight approx. 50 ton
Used for straightening heated steel flanges
From insolvency – good condition
Machine not operational – control not functioning
Offered at special price
