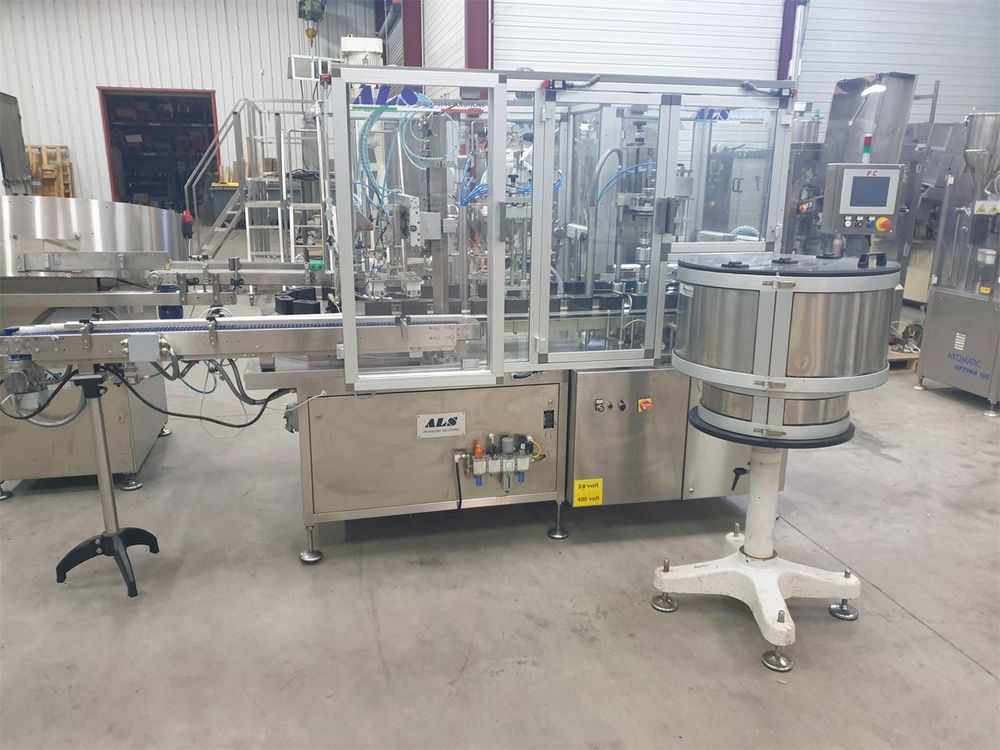

ALS APUS 4, Filler

Weight : 850 kg
Dimensions : (L x W x H) 4.30 x 3.00 x 1.95 M
Automatic filling, capping,
and screw-capping machine for plastic bottles,
for liquid, semi-liquid, or shampoo products.

Equipped with:
- Bottle loading station with a mechanical bowl that positions the bottles on the conveyor.
- Conveyor with a suction system to keep small bottles upright.
- Bottle loading station into the hopper.
- Bottle presence check station before filling.
- Product filling station with 4 stainless steel plunger nozzles.
- Product dosing station with 4 adjustable stainless steel volumetric flow meters displayed on the screen. - ENDRESS + HAUSER flow meter.
- Drip-cutting station.
- Cap removal station with a vibrating bowl and vibrating ramp to move the cap away from the bottle. - Cap tightening station with a mechanical adjustment for tightening torque.
- Cap presence control station.
- Bottle retrieval station (2 at a time) and placement on the outfeed conveyor.
- Bottle outfeed conveyor.
- Touchscreen with programmable recipe.
- General drive via variable-speed motor.
- Protective guards with safety features.
- Stainless steel frame.
- Sold with peripheral components.

Current Equipment:
- Oval bottle: 60 x 25 mm

Capacity:
- Bottle dimensions:
* Minimum diameter: 10 mm - Maximum diameter: 85 mm
* Minimum height: 25 mm - Maximum height: 180 mm
- Dispensing capacity: 10 to 2,000 ml

Maximum hourly production:
Approximately 3,000 bottles, depending on the product and the volume to be filled.
Motor power: 5 kW
Compressed air pressure: 6 bar
380 V - 50 Hz

Overall dimensions of peripheral components:
Mechanical bowl: 2.40 x 1.30 x 1.40 m
Vibrating bowl: 0.70 x 0.70 x 1.40 m
The machine: 3.80 x 1.30 x 1.95 m
Overall: 4.30 x 3.00 x 1.95 m
