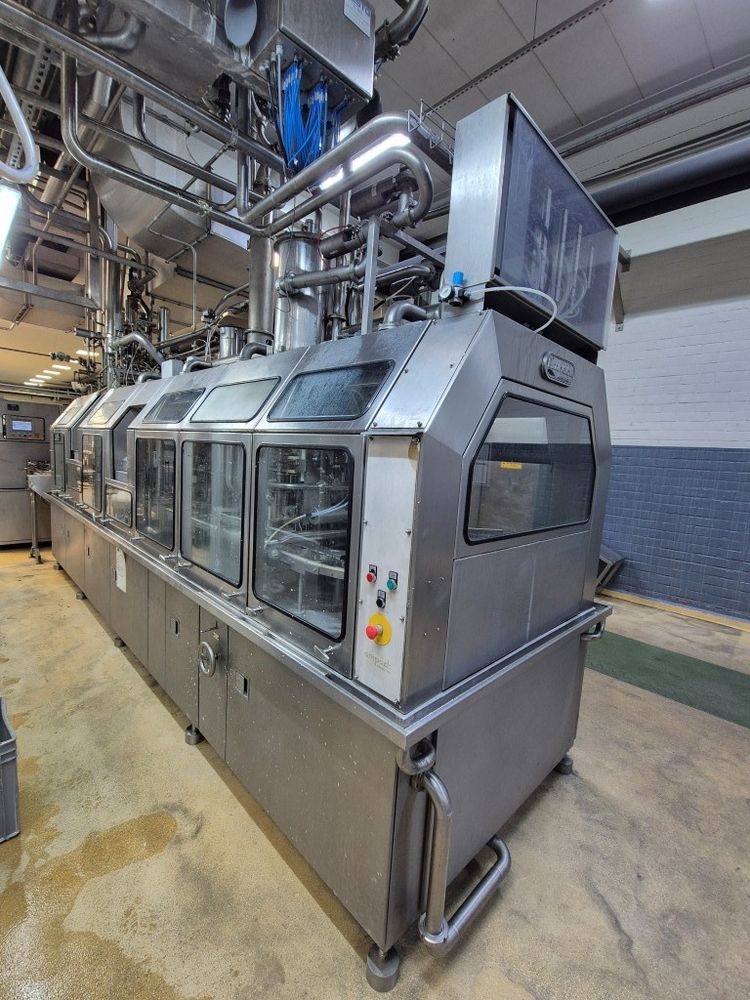

Ampack KF1/3

Capacity 2.700-5.400 cups per hour
Carousel Cup filling- sealing machine.
Formats on this machine round 95 mm.
Capacity depends on viscosity and foam properties of the product
and shape- and headspace of the packaging.
Steps of the machine: 1) Preformed cups unstacking
with vacuum,
2) Cup decontamination by peroxide injection
and drying with superheated steam in 4 steps.
Electric air heater built on the machine.
3) Predoser, cutting of doser for viscous products like fruit jams,
CIP-cleanable by placing a cleaning bar.
4) Main doser, positive doser, combination filler,
flexible for thinner and thicker products CIP-cleanable by placing cleaning bar.
5) Seal decontimanation (by infrared radiators)
and applying station . 6) Heat sealing.
7) seal checking station by squeezing the cup and seal detecting.
8) Over Snap cap Lid pressure station (only for 95mm)
9) Outfeed to conveyor belt. Controls: Siemens Simatic S5.
Original packer (ASGP4) also available under STN16003.
Dimensions ca.: 600x175x280 (lxwxh) cm - weight: ca. 6.000 kg's.
