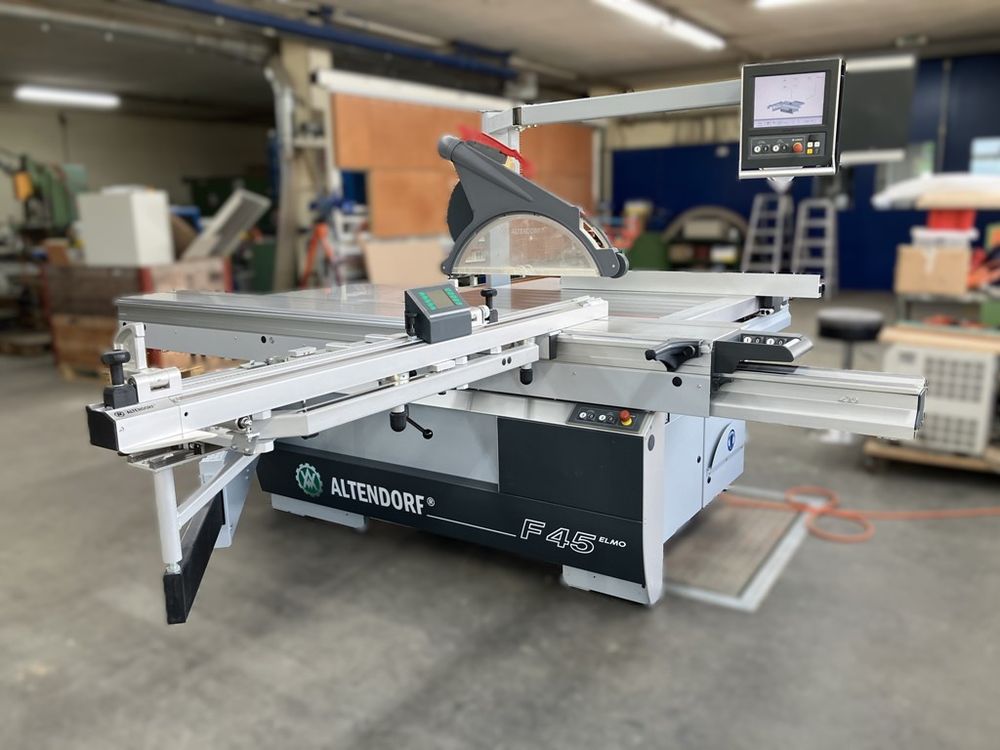

Altendorf F 45 Elmo III
EUROPE (Western and Northern)
Sliding table saw
Operation via 12″ touchscreen
Parallelogram cross slide with DIGIT-LD:
digital length and angle measurement
display Carriage length: 3000 mm
Cutting width to the right of the blade: 1000 mm (electrically driven)
Maximum saw blade with scoring unit: 500 mm
Maximum saw blade without scoring unit: 550 mm
Cutting height at Ø550 mm: 100-200 mm
Cutting height at Ø500 mm : 75-175 mm
Cutting height at Ø350 mm: 0-100 mm
Scoring saw blade: Yes
Tiltable 45°: Yes
Cutting height 90°: 200 mm
Height adjustment: automatic, motorized
Tilt adjustment: automatic, motorized
Speeds: 2000 – 6000 rpm (VARIO)
Safety device: CE
Motor: 5.5 kW, 400 V
Rated current: 13.5 A
Fuse: 35 A
Dust extraction port: 1×80 / 1×120 mm
Installation dimensions (L x W x H): approx. 6650 x 5000 x 1900 mm
Transport dimensions (L x W x H): approx. 3400 x 1500 x 1900 mm
Weight: approx. 1100 kg
Workshop tested
