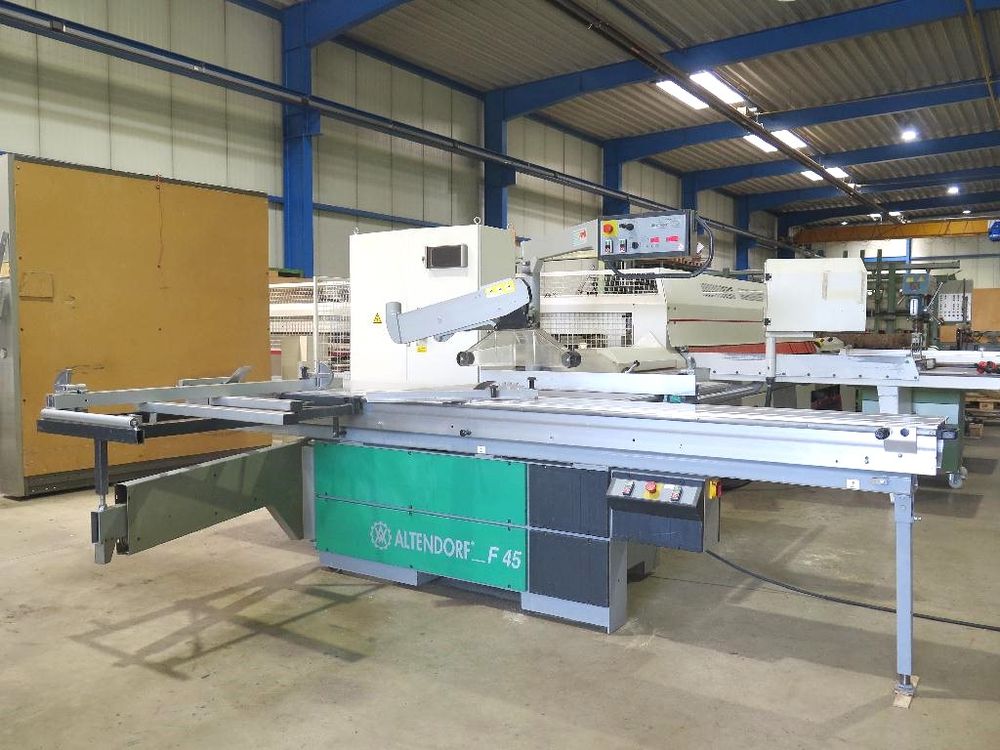

Altendorf F 45 ELMO

Panel Saw
Sliding carriage length 3800 mm
Swiveling saw blade 45°
Main saw motor 7.5 kW
With scoring unit, motor power 0.75 kW
Cutting width to the right of the saw blade 1350 mm
Swiveling control panel above the machine
Digital display for tilt and saw blade speed
Operation via button or joystick
Electrically raised/lowered/swiveling of the main saw blade
Electrically raised/lowered of the scoring unit
Maximum saw blade diameter 350 mm with scoring unit
Maximum saw blade diameter 450 mm without scoring unit
Maximum cutting height at 90°: 150 mm
Maximum cutting height at 45°: 106 mm
Speed ​​adjustable via V-belt
3000/4000/5000/6000 rpm
Extractor connection diameters 80 mm and 120 mm
Arm with extraction hood above the saw blade
With narrow extraction hood for 90° cuts
With wide extraction hood for 45° cuts
With table extension 830 mm x 700 mm
With table extension 1200 mm x 700 mm
Weight 1260 kg
Dimensions: 3900 mm x 2800 mm x H 1750 mm
Loading dimensions : 3900 mm x 2000 mm x H 1750 mm
