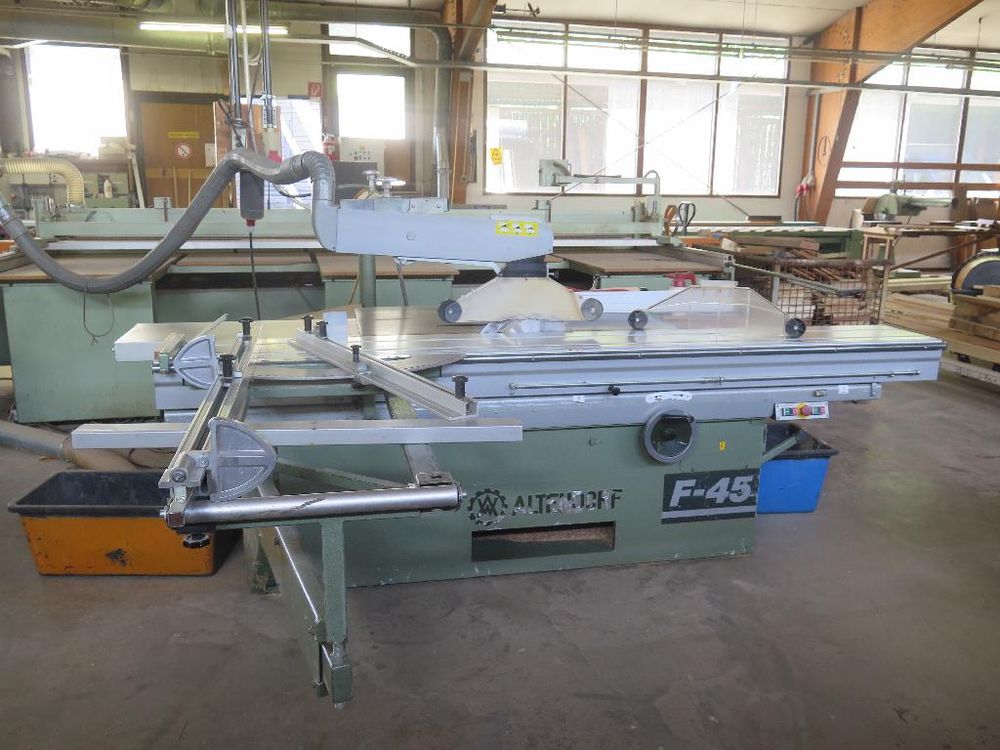

Altendorf F 45

Panel Saw
Sliding carriage length 2800 mm
Saw blade pivots 45°
With scoring unit
Extraction hood above the saw blade
Including a wide extraction hood for 45° cuts
and a narrow hood for 90° cuts
Angle stop on the sliding carriage
Motor power 5.5 kW
Scoring motor 0.75 kW
Cutting width to the right of the saw blade 1050 mm
With table extension
With table extension
Maximum saw blade diameter with scoring unit 350 mm
Maximum saw blade diameter 400 mm without scoring unit
Maximum cutting height at 90° 130 mm
Maximum cutting height at 45° 90 mm
Saw spindle speed 3000/4000/5000/6000 rpm
Extractor connection above saw blade, diameter 80 mm
Extractor connection below, diameter 120 mm
Length stop with magnifying glass and roller support
Weight: approx. 1200 kg
