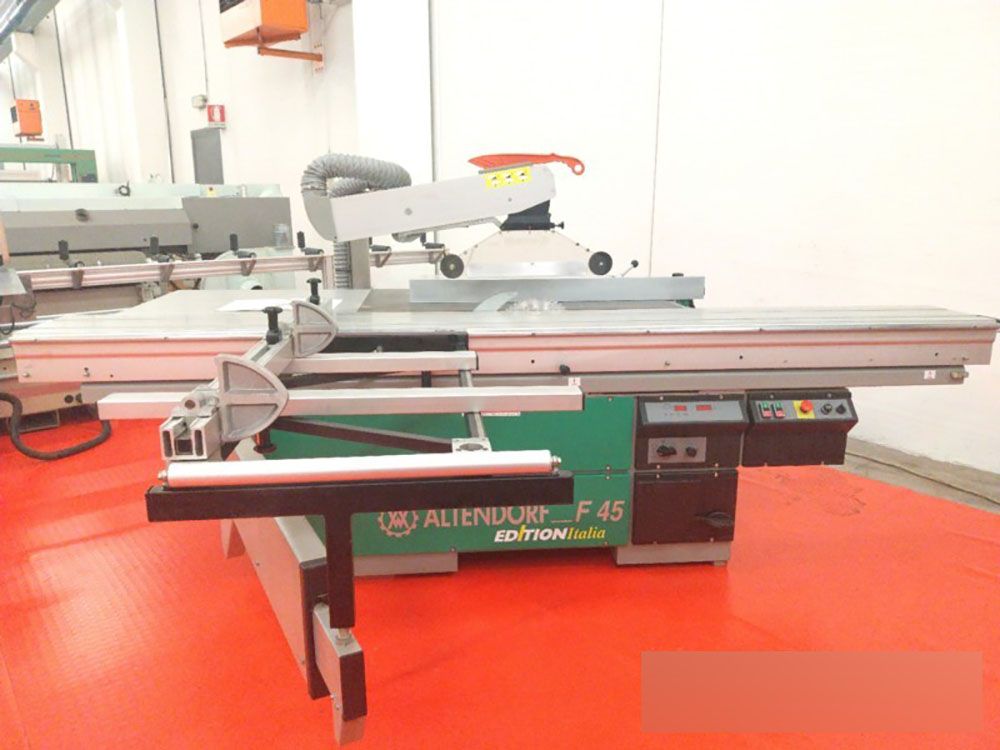

Altendorf F 45

Panel saw with tilting blade and scoring unit for precise cutting of wood materials,
furniture, custom furniture, window frames , doors, panels, plastics, composite materials,
aluminum and various - CE Standard

Technical data:
Aluminum carriage length mm 3200
Hydrualic blade lifting and tilting with foot pedal operation
Cutting width parallel guide mm 1300
Max blade diameter mm 400 F30
Cutting height with blade at 90° mm 125
Cutting height with blade at 45° mm 90
Motor Kw 5,5
Electrically adjustable in height and width scoring unit - Blade diameter mm 120 - Motor Kw 0,75
Digital display of the number of revolutions
Digital display of the degree of inclination
Speed rpm 3000/4000/5000/6000
Control elements on both sides of the carriage
Worktable extension
Register ‘DUPLEX’ for making square cuts from 0 to 90° with high precision and continuous adjustment
Parallelogram protective cover
Overall dimensions of assembled machine: mm 3300 x 3200 x 1450 h
Overall dimensions for transport: mm 3300 x 2000 x 1450 h
Weight kg 1000
