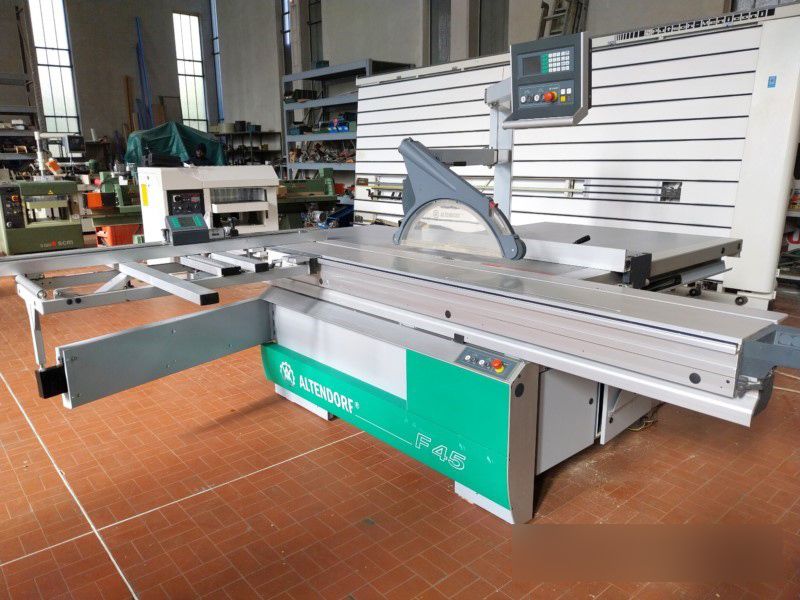

Altendorf F 45
EUROPE (Western and Northern)
CNC-controlled 3-axis panel saw with tilting blade for furniture, custom-made furnishings,
panels, doors, wooden window frames, plastics, composite materials and various - CE Standard
Technical data:
Precise sliding double roller carriage
Aluminium carriage length 3200 mm
Max blade diameter 450 mm
Max cutting height 150 mm
Cutting height at 45° 105 mm
Scoring unit blade diameter 120 mm
3 controlled axis (lifting/blade tilting/parallel guide)
Electric motor adjustment 2-axis scoring unit
Control panel at operator height with colour LCD screen
Anodised aluminium table extension 840 mm
Parallelogram blade guard
Register for oblique square cuts, manual adjustment, with length compensation, end cutting up to 3500 mm
Blade locking system
Work table height 910 mm
Overall dimensions of assembled machine mm 3400 x 3400 x 1700 h
Overall dimensions for transport mm 3400 x 2100 x 1700 h
Weight kg 1050
