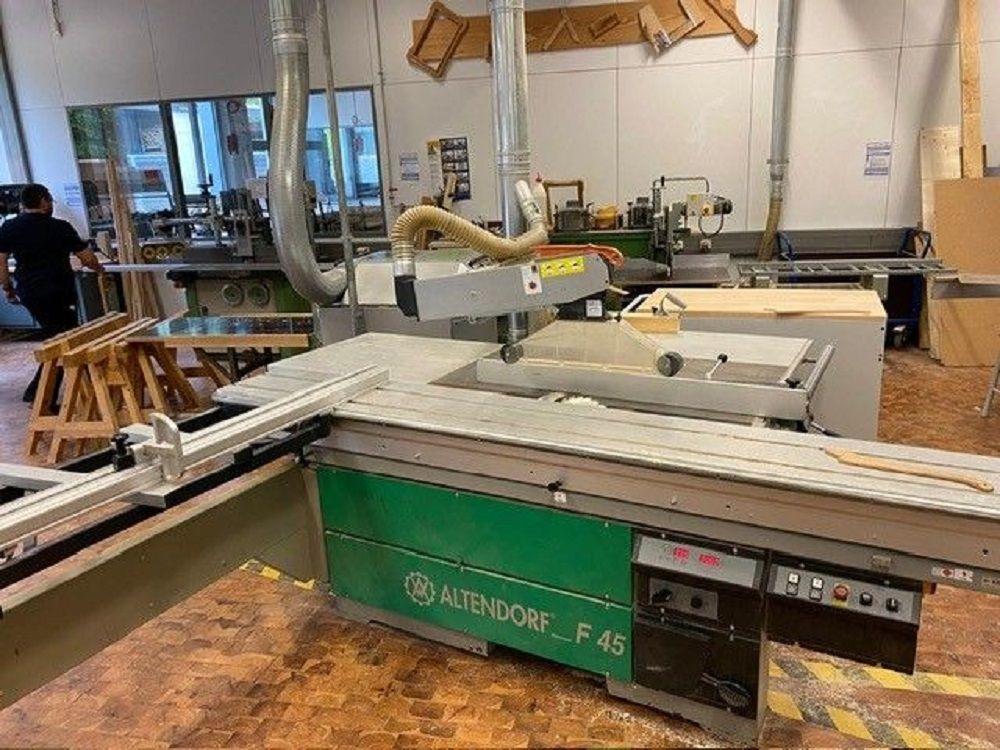

Altendorf F45

Saw unit: pivots 45°
Carriage length: 2800 mm
Max. sawblade diameter: 350 mm
Sawblade bore: 30 mm
Motor power: 5.5 kW

Scoring unit: electrically adjustable
Max. cutting width: 1050 mm
Control panel: located at the bottom of the machine housing
Height adjustment: hydraulic via foot pedal
Pivot adjustment: hydraulic via foot pedal
Pivot angle display: digital
Cutting width display: scale
Sliding table guide: Pertinax
Cross stop display: scale
PSV protective cover: yes
Automatic motor brake: yes
Approx. weight: 1100 kg
Dimensions: 2800 x 1500 x 1700 mm
Extraction diameter: 1 x 80, 1 x 120 mm
