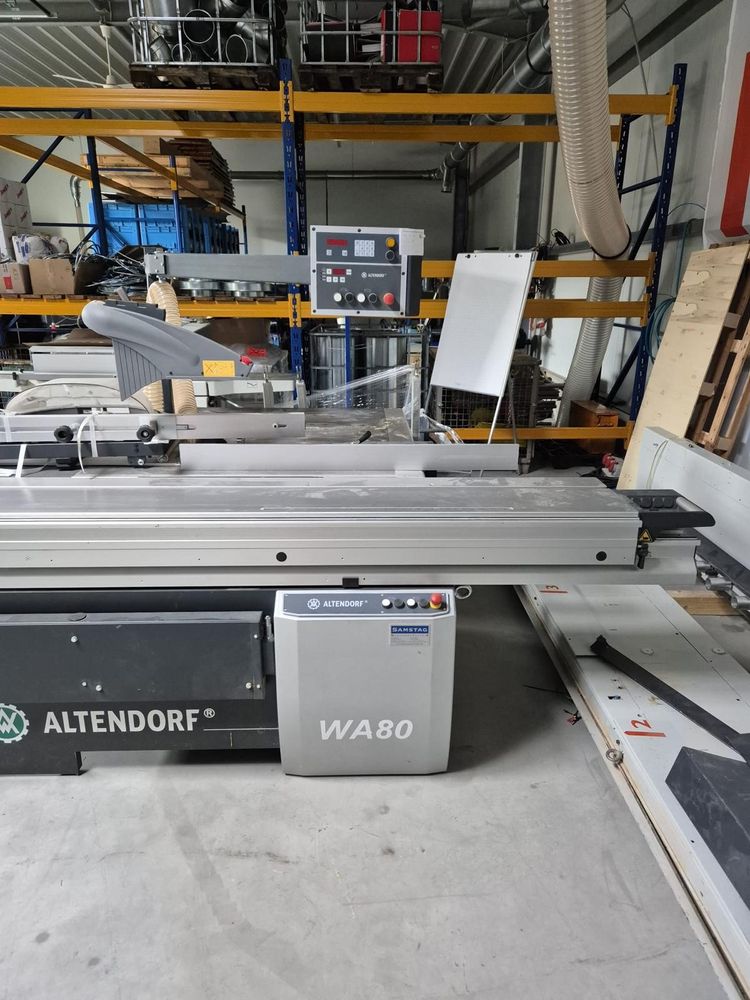

Altendorf WA 80X

Used machine
Sawblade adjustment
Electric height and tilt adjustment 0-46° for the main sawblade
Digital tilt angle display

Sawblade projection
Max. 150 mm, sawblade diameter max. 450 mm

Control panel
At eye level

Double-sided sliding table
Carriage length 3,000 mm including continuously variable upper carriage locking

Rip stop, cutting width 1,000 mm
CNC rip stop

Angle stop with fixed 90° position
Manually adjustable via scale, cutting to lengths up to 3,200 mm

Drive power and speed
4 kW (5.5 HP) with one speed (4,000 rpm)

AKE tool clamping system for the main sawblade
Incl. Altendorf 5.5 kW (7.5 HP) With 3 speeds, 3, 4, and 5,000 rpm, manually adjustable
Includes Altendorf scoring unit with electric height and manual lateral adjustment
Includes Altendorf new DUPLEX double-sided miter gauge, cutting to lengths up to 1,350 mm
Includes Altendorf angle miter gauge, cutting to lengths up to 3,500 mm, manual angle adjustment by 49°, with length compensation
