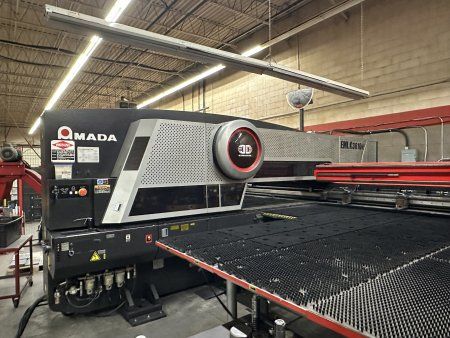

Amada ELMK3610NT 33 ton

Rapid traverse X: 3937 ipm
Rapid traverse Y: 3149 ipm
Rapid traverse Z: 2362 ipm
Rapid traverse simultaneous: 5051 ipm
Axis configuration: X, Y, TL, Z, B, T, C

Control: AMNC-PC-OS Windows
CNC
Laser source: AF-4000E
Laser power: 4000 W
Z-axis sensor: HS-2003

Press force: 33 ton

Work area X (laser): 100 in
Work area X (punching): 120 in
Work area Y (laser): 60 in
Work area Y (punching): 72 in
Z axis travel: 14.9 in

Max. sheet thickness (mild steel): 1/4 in
Max. sheet thickness (stainless steel): 1/4 in
Max. sheet thickness (aluminum): 1/4 in
Max. workpiece weight: 330 lbs

Max. cutting speed X: 780 ipm
Max. cutting speed Y: 780 ipm

Hit rate high speed marking: 1800 hits/min
Hit rate 1" moves: 400 hits/min

Repeatability: ±0.00027 in
Positioning accuracy: ±0.0012 in
Punching accuracy: ±0.004 in

Turret stations: 58
Auto-index stations: 4

Machine weight: 66139 lbs

AS III automated tower
King turret configuration
