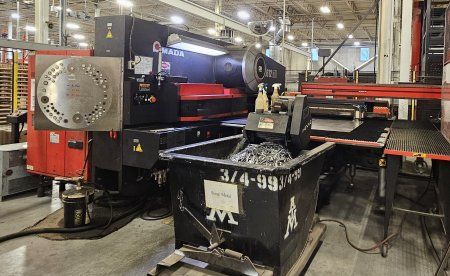

Amada EMK3612 M2 33 Ton

33 Ton Press Capacity
X Axis Travel: 120"
Y Axis Travel: 60"
Maximum Sheet Size with One Reposition: 240" x 60"
Table Positioning Speed X: 3,937 IPM
Table Positioning Speed Y: 3,150 IPM
Turret Rotation Speed: 30 RPM
Punching Hit Rate (1" pitch): 500 HPM (X)
Punching Hit Rate (1" pitch): 300 HPM (Y)
Nibbling Hit Rate (0.080" pitch): 1,800 HPM
Punching Accuracy: ±0.004"
High Accuracy Mode: ±0.0027"
Feed Clearance: 0.984"
Stroke Length: 1.45"
Maximum Sheet Thickness: 0.187"
Maximum Sheet Weight: 110 lbs (F1)
Maximum Sheet Weight: 330 lbs (F4)
Electric Power: 200/208V 3 Phase
Machine Weight: 46,200 lbs
