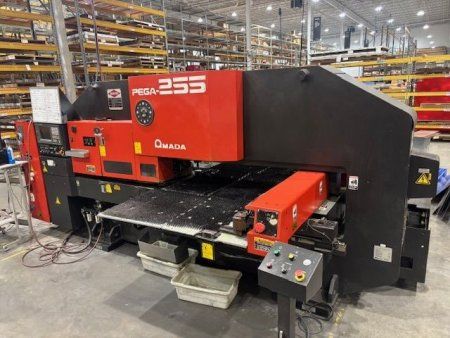

Amada PEGA 255 22 Ton Press Capacity

X Axis Travel: 50"
Y Axis Travel: 50"
Maximum Sheet Size with One Reposition: 50" x 100"
Maximum Linear Table Speed X: 2559 IPM
Maximum Linear Table Speed Y: 1968 IPM
Turret Rotation Speed: 35 RPM
Control: Fanuc 18P CNC
Control Axes: X, Y, T, C
Input Method: MDI
Input Method: Floppy Disk Drive
Input Method: DNC
Minimum Command Unit: 0.001" (X, Y)
Minimum Command Unit: 0.01 Degree
Minimum Travel Unit: 0.001" (X, Y)
Minimum Travel Unit: 0.01 Degree
Operating Modes: Automatic
Operating Modes: MDI
Operating Modes: Manual
Display Mode: Program Contents
Display Mode: Position Information
Display Mode: Program Check
Display Mode: Parameters
Display Mode: Tool Hit Counter
Display Mode: Self-Diagnostics
Interlock Display: Oil Temperature
Interlock Display: Door Open
Drive Motors: Fanuc AC Servo (X, Y, T, C)
Maximum Sheet Thickness (Ball Transfer Table): 0.250"
Maximum Sheet Thickness (Brush Transfer Table): 10 Gauge
Maximum Material Weight (Ball Transfer Table): 231 lbs (F-4)
Maximum Material Weight (Ball Transfer Table): 110 lbs (F-1)
Maximum Material Weight (Brush Transfer Table): 110 lbs (F-1)
Punching Accuracy: 0.004"
Positioning Accuracy: 0.0014"
Repeatability: 0.001"
Press Stroke: 1.26"
Stroke Rate (1" Centers): 230 HPM (X)
Stroke Rate (1" Centers): 210 HPM (Y)
Nibbling Rate (0.315" Pitch): 350 HPM (X)
Nibbling Rate (0.315" Pitch): 350 HPM (Y)
Maximum Hole Diameter: 3.5"
Tool Type: Amada Thick Turret
Turret Capacity: 31 Stations
Auto-Index Stations: 3
Feed Clearance: 0.787"
