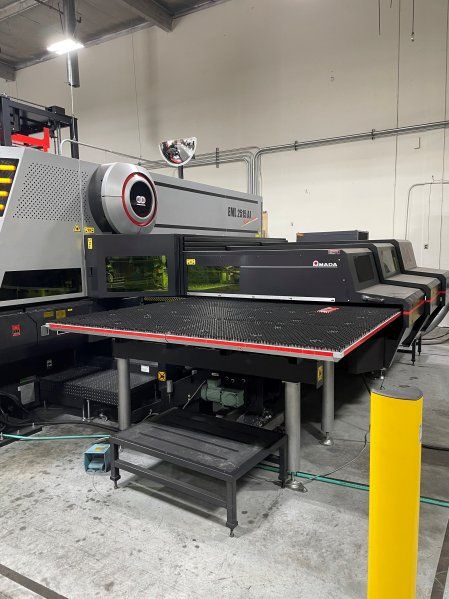

Amada EML 2515AJ Multimedia CNC Control

Features and Equipment
ASR3015 NTK Automated Tower
Automatic Assist Gas Change
55 Station Turret
4 Auto Index Stations
Brush Table
Parts Chute: 15.75" x 60"
Bridge Frame
Servo-Electric Press Drive
AC-Servo Motors (Turret/Table Drive)
Multimedia CNC Control

Punching Force: 33 TON
Punching Area (X/Y): 120" x 60"
Laser Area (X/Y): 100" x 60"
Combined Work Area with Repositioning: 120" x 60"
Z-Axis Laser Travel: 14.9"
Max. Material Thickness: 0.250"
Table Loading Weight: 480 lbs
Traverse Speed (X/YP): 3,937 / 3,149 IPM
Laser Axis Speed (YL): 3,149 IPM
Simultaneous Axis Speed: 5,039 IPM
Z-Axis Simultaneous Speed: 2,362 IPM
Processing Accuracy: ±0.0027"
Punch Stroke (Adjustable): 1.5"
Punch Rate (1" Centers): 500 Hits/Min
Marking Mode Rate: 1850 Hits/Min
Continuous Laser Output: 3 kW
Laser Model: AJ 3000
Control: AMNC 3i
Controlled Axes: 6
Storage Capacity: 440 kB
Machine Weight: 33 Tons
