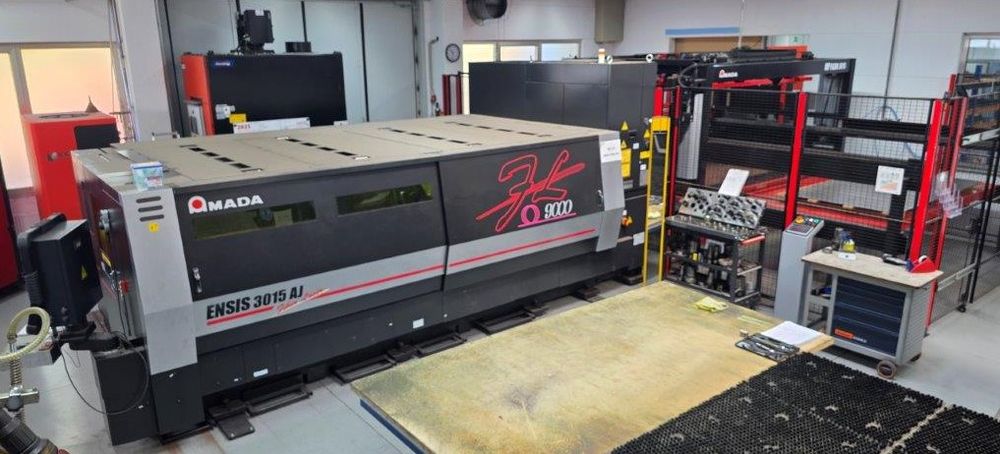

Amada ENSIS 3015 AJ 9kW Fibre Laser with MP Flexit CNC CONTROL

Axis travel: X 3070 mm
Axis travel: Y 1550 mm
Axis travel: Z 100 mm
Controlled axes: X, Y, Z (simultaneous) + B axis
Maximum processing dimensions: 3070 × 1550 mm
Maximum guaranteed thickness: 25 mm mild steel (with WACS)
Maximum guaranteed thickness: 20 mm mild steel (without WACS)
Maximum guaranteed thickness: 25 mm stainless
Maximum guaranteed thickness: 25 mm aluminium (A5052)
Maximum guaranteed thickness: 18 mm brass
Maximum guaranteed thickness: 12 mm copper
Maximum simultaneous feed rate: 170 m/min (X/Y)
Positioning accuracy: ±0.01 mm
Maximum material mass: 920 kg
Rated output: 9000 W
Processing surface height: 940 mm
Numerical control: AMNC 3i

FEATURES / EQUIPMENT
Auto nozzle changer
WACS II
Single lens processing
Front and side access
X-direction conveyor
Dust air blow
Pierce monitoring
Deep etch
Compressed air cutting
Single pallet load/unload system (MPF)
Due into stock soon
