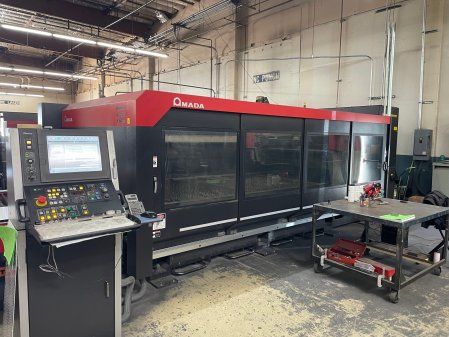

Amada FOM2-3015NT AMNC-NT

AMADA FOM2-3015NT
2013

Laser power: 4000 watts
Approximate hours: 28,000
Travel method: X & Y - axis beam move
Drive method: X Rack & Pinion, Y & Z Ball screw
Work area X: 121"
Work area Y: 61"
Work area Z: 7.87"
Maximum thickness mild steel: 7/8"
Maximum thickness stainless steel: 1/2"
Maximum thickness aluminum: 3/8"
Maximum work weight: 2000 lbs
Rapid traverse X & Y: 3,150 inches per minute
Simultaneous rapid traverse: 4455 inches per minute
Rapid traverse Z: 2,362 inches per minute
Repeatability: +/- 0.0002"
Z-axis sensor: HS-2007
CNC controller model: AMNC-NT
CNC controller display: LCD color graphics
Control function: X, Y, Z simultaneous and focus lens B-axis, adaptive optic, laser power control (CW, gated pulse, pierce routines)
Data input methods: Touch screen, keyboard, ethernet, wireless, CD, USB, 3.5" floppy disk
Minimum command unit: 0.0001" (X, Y, Z)
Minimum travel unit: 0.0001" (X, Y, Z)
Standard memory: 2 MB
Hard drive: 10 GB
Operating modes: Automatic and manual
Display modes: Program contents, position info, program check, settings, parameters, beam diameter compensation, assist gas status, self-diagnostics
Interlock displays: Cooling water status, gas pressure status, vacuum status, turbo blower malfunction, shutter status, beam power, resonator discharge, door open, WACS
Approximate machine weight: 34,216 lbs (includes shuttle tables)
Power requirements: 200/220V +/- 10%, 50/60 Hz
Equipped with chiller
Equipped with beam purge
