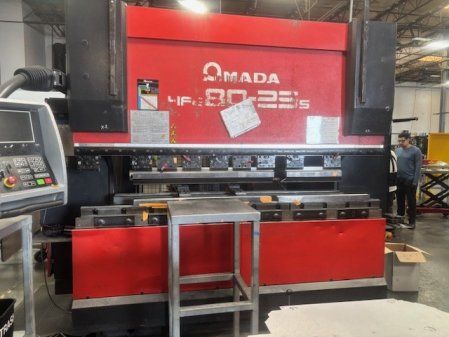

Amada HFE-8025S 88 tons

Press Force 88 tons
Bed Length 101"
Maximum Stroke Length 7.8"
Open Height 18.5"
Throat Depth 16.5"
Distance Between Side Frames 83"
Table Width 2.36"
Ram Repeatability ±0.0004"
Approach Speed 7.87"/sec
Bending Speed 0.04–0.787"/sec
Return Speed 0.04–7.87"/sec
Backgauge Model Amada Type B
X Axis Repeatability ±0.0004"
X Axis Travel 27.5"/37.5"
R Axis Travel 9.84"
Z Axis Travel 72"
X Axis Feed Speed 19.5"/sec
R Axis Feed Speed 6.2"/sec
Z Axis Feed Speed 39.3"/sec
CNC Controller Amada OPERATEUR II
Controlled Axes 7
Y1Y2 Ram Depth
X1X2 Backgauge
Z1Z2 Horizontal Finger Position
R Axis Vertical Finger Position
Motor 20 HP
Hydraulic Oil Capacity 28 gallons
Machine Dimensions 143" L x 100" W x 98" H
Machine Weight 13,500 lbs
