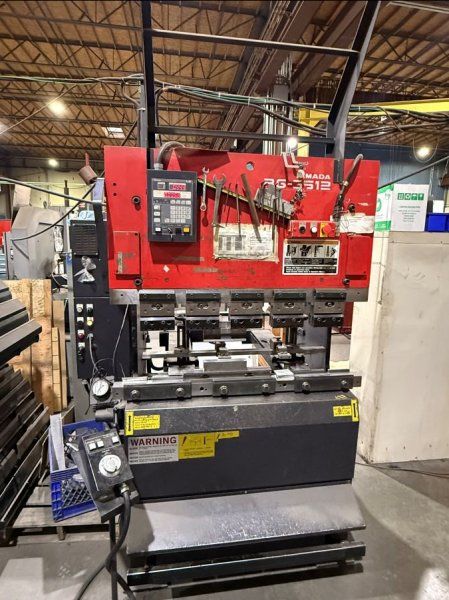

Amada RG-3512-LD 35 tons (39 US tons)

Press capacity: 35 tons (39 US tons)
Maximum bend length: 49.21"
Vertical stroke of lower beam: 3.937"
Rising speed of lower beam at 60 Hz: 2.992 in/sec
Bending speed of lower beam at 60 Hz: 0.520 in/sec
Lowering speed of lower beam at 60 Hz: 1.575 in/sec
Number of cylinders: 1
Hydraulic unit tank capacity: 10 gal
Machine weight: 2.0 US tons
Numerical controls
Position command method: Absolute value method
Number of controlled axes: 2 axes
D-axis input method: Teaching with handwheel and numeric key entry
L-axis input method: Numeric key entry
Least input increment D-axis: 0.0004"
Least input increment L-axis: 0.001"
Display method: 7-segment LED
Position detection D-axis: Encoder
Position detection L-axis: Encoder
Memory capacity: 99 steps in L-only mode and 99 steps in MDI mode (198 total)
Drive method D-axis: 200 W DC motor
Drive method L-axis: 200 W DC motor
Origin setup D-axis: Tool origin by aligning tools
Origin setup L-axis: Automatic origin with origin start button
Alarm display: Numerical error display
Ambient temperature: 32–104°F
Ambient humidity: Max 75% without condensation
Feed rate D-axis: 0.01–0.60 in/sec
Feed rate L-axis: 590.55 in/min
Travel range D-axis: 0–3.937"
Travel range L-axis: 0–19.685"
Stopper height: 1.969–7.087"
Positioning accuracy D-axis: ±0.0004"
Positioning accuracy L-axis: ±0.0060"
