Amada HG-1003ARS 110 TON

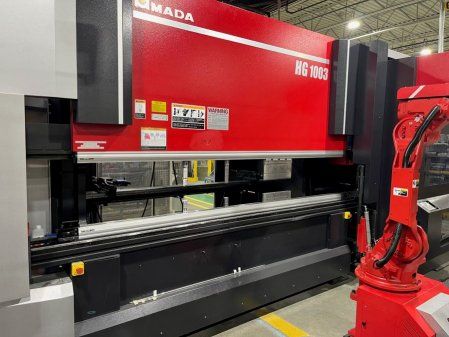

AMADA HG-1003ARS ROBOTIC BENDING CELL W/AUTOMATICTOOL CHANGER
MFG:2017


Tonnage (US): 110 Tons
Table Length: 122.4"
Max Bending Length: 120.5"
Distance Between Uprights: 106.3"
Throat Depth: 17.7"
Length of Stroke: 9.8"
Open Height: 23.5"
Hydraulic Oil Reservoir: 15.7 gal
Backgauge: 6 axis plus 2 axis L-shift
Maximum Approach Speed: 8.66 inches per second
Maximum Bending Speed: 0.78 inches per second
Maximum Return Speed: 9.84 inches per second
Control: AMNC 3i

Brake Dimensions
Overall Length: 244.5"
Overall Width: 126.8"
Overall Height: 115.9"
Ground Height: 115.9"
Net Weight: 26896 lb
Environmental Temperature: 32~104F
Specifications Automatic Tool Changer (ATC)
Tool style: AMTS IIIS ATC
Punch stockers: 15
Die stockers: 18.
ATC location: Right hand
Auto tool layout range: 118.1"
Minimum tool pitch: 0.196"
"V" Range: 0.157-1.57"
Punch reversal unit: Stocker 1-12 reversible only
Punch height: 8.7" standard, 9.4" special

Specifications Robot
Model: HGROBOT020
Mass of Capacity: 44 lb
Mass of Machine: 6173 lb
Motor Rated Out Put: 1.8 kW

Axis Max Range Max Speed
S Axis 360 150/s
L Axis 265 150/s
U Axis 420 170/s
R Axis 400 200/s
B Axis 280 200/s
T Axis 720 200/s
E Axis 6.4 m 2.0 m/s
252.0" 78.7 in/s

Equipped With
Some Tools
