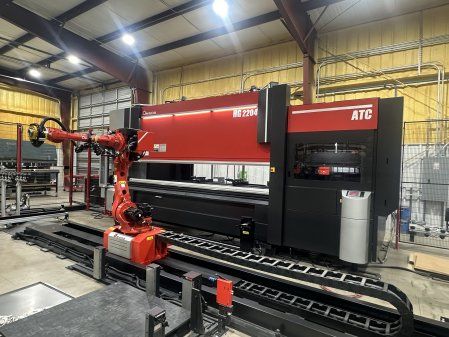

Amada HG2204ARm 240 TON

Auto Tool Changer
New AMNC 3i Control
8-Axis Backgauge with L-Shift
Integrated Bend Sensor
Factory-Installed Sheet Follower
Low Energy Consumption
Safety Device
Safety Gate (Tool Change)
Light Guard (Slide Pedal)
PILZ PSENvip P (Operation)
Foot Pedal (2) Auto Slide and Remote
Auto Bi-S (Dual) Bend Angle Control
Sheet Followers Standard

Press Force: 240 TON
Max. Bend Length: 161.4"
Max. Stroke Length: 9.8"
Open Height: 23.4"
Distance Between Housings: 148"
Crowning System: (3) Hydraulic Crowning Cylinders
Ram Repeatability: 0.00004"
Approach Speed: 8.7"/sec
Bending Speed: 0.78"/sec (max., programmable)
Return Speed: 9.8"/sec
Backgauge: (8) Axes including L-Shift
Overall Machine Dimensions: 280.5" L x 134.4" W x 130.7" H
Hydraulic Oil Capacity: 32.4 gal
Total Weight: 51,900 lbs
Supply Power: 200V, 41kVA
