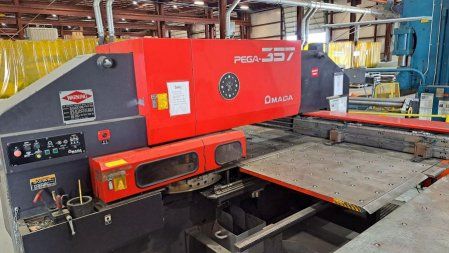

Amada PEGA 357 33 ton

Press capacity: 33 ton
Frame design: Bridge
Type of punching force: Mechanical
Type of clutch and brake: Hydraulic
X-axis travel: 72"
Y-axis travel: 50"
Throat depth: 50"
Maximum sheet size with one auto-reposition: 50" × 144"
Control: Fanuc 04PC
Tape format: E.I.A. or A.S.C.I.I.
Programming mode: Absolute/Incremental
Smallest programmable increment: .001"
Axis and turret drive: AC motors brushless/servo
Strokes per minute: 350
Axis speed: 2,000 IPM
Hits per minute at 1" moves: 200
Nibbling hits per minute: 350 IPM
Main motor: 5 HP 3/60 volts
Machine weight: 11.6 tons
Approximate dimensions: 181" L × 148" W × 88" H
Number of turret stations: 45 with 4 auto-index
Turret rotation: 30 RPM
Maximum hole diameter: 4.5"
Maximum material thickness: .25" mild steel
Tool type: Thick
Turret stations: 24 × "
12 × 1"
2 × 2"
1 × 3"
2 × 4"
2 × 1" with auto index
2 × 2" with auto index
