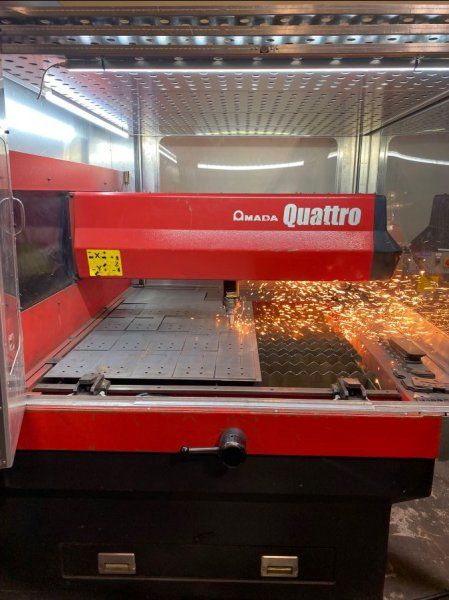

Amada QUATTRO Fanuc 160iL control

X-axis travel: 49.6″
Y-axis travel: 49.6″
Z-axis travel: 1.4″
Beam delivery system: Flying optics
Maximum axis speed (X,Y): 1181″/min (30 m/min)
Maximum axis speed (Z): 590″/min (15 m/min)
Rated laser output: 2000 watts
Peak pulse power: 2700 watts
Maximum sheet size: 4′ × 4′
Maximum load weight: 176 lbs
Maximum material thickness (carbon steel): 0.500″
Maximum material thickness (stainless steel): 0.187″
Maximum material thickness (aluminum): 0.125″
Machine weight: 8488 lbs
Machine dimensions: 122″ L × 86″ W × 65″ H
Equipped with Fanuc 160iL control
Equipped with ball screw drives
Equipped with chiller
Equipped with dust collector
Compact design
Lower running cost
One-piece construction (frame and table)
