Amada Techster 106
EUROPE (Western and Northern)

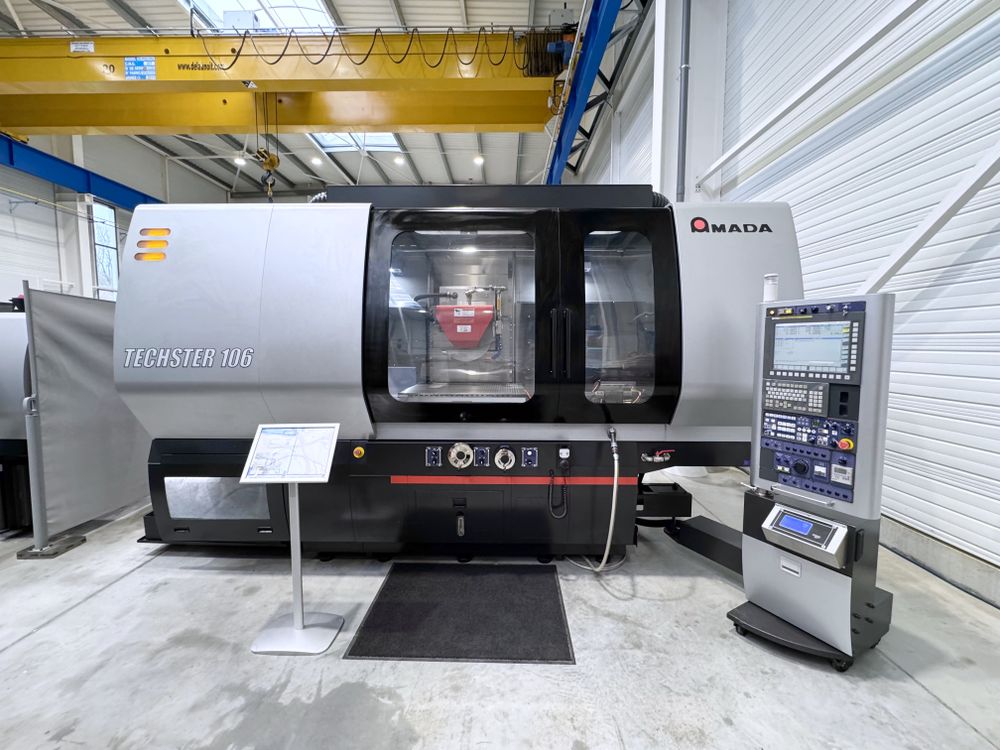

CNC Surface grinder AMADA Techster 106
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2017

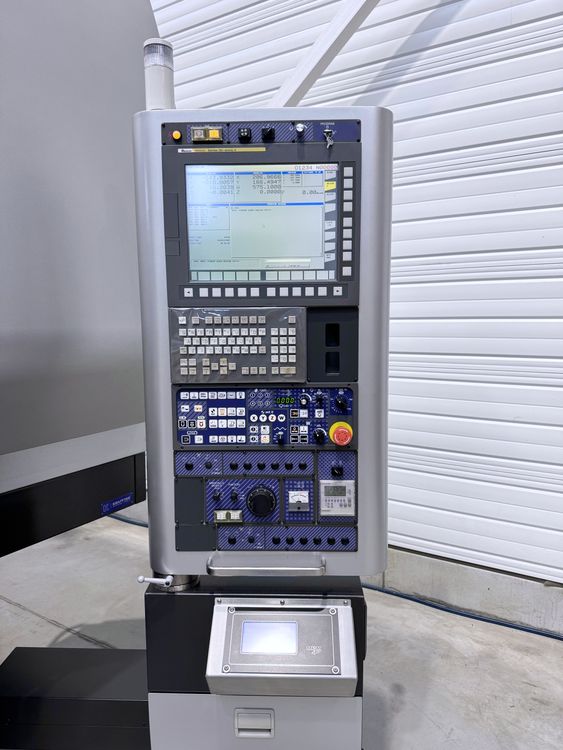

CNC control: FANUC series 32i-B
Colour touch screen: 15 ["]
Maximum grinding lenght x width: 1000 x 600 [mm]
W axis travel (longitudinal axis): 1300 [mm]
Min. Stroke speed W axis: 0.1 [mm/min]
Max. Stroke speed W axis: 40000 [mm/min]
Rapid traverse rate W axis: 40000 [mm/min]
X axis travel (transverse movement): 660 [mm]
Min. Stroke speed X axis: 0.1 [mm/min]
Max. Stroke speed X axis: 5000 [mm/min]
Rapid traverse rate X axis: 5000 [mm/min]
Resolution X axis: 0.0001 [mm]
Stroke Y axis (vertical movement): 750 [mm]
Min. Stroke speed Y axis: 0.1 [mm/min]
Max. Stroke speed Y axis: 500 [mm/min]
Rapid traverse rate Y axis: 2000 [mm/min]
Resolution Y axis: 0.0001 [mm]
Max. distance spindle nose / table: 750 [mm]
Max. load on table: 1500 [Kg]
Min. grinding wheel speed: 300 [rpm]
Max. grinding wheel speed: 2000 [rpm]
Grinding spindle motor power: 11 [kW]
Max. diameter grinding wheel: 405 [mm]
Max. grinding wheel width: 50 [mm]
Grinding wheel bore: 127 [mm]
Working hours: 2710 [h]
Total power required: 29 [kVA]
Weight: 11000 [Kg]
EQUIPMENT / INCLUDED OPTIONS:
2-axis simultaneous

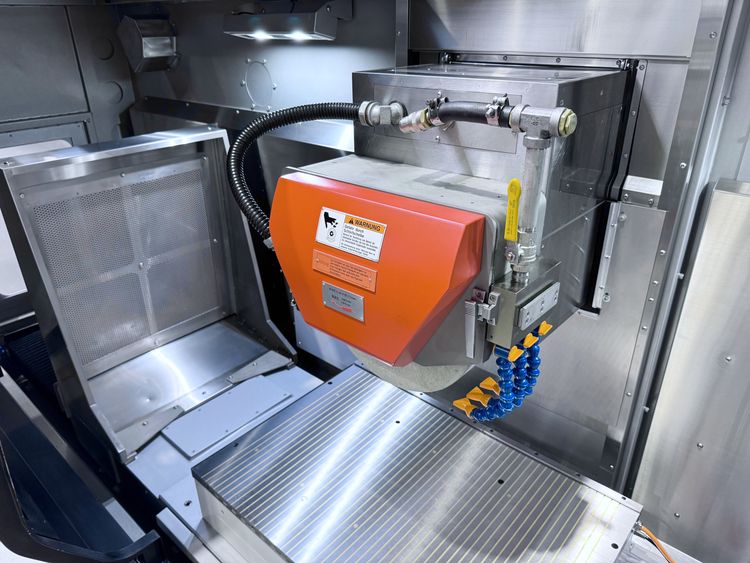

1x electro-magnetic chuck, 900 x 600 [mm]
1x automatic grinding wheel balancing device, MPM type 3.ESB.150A.114.CF

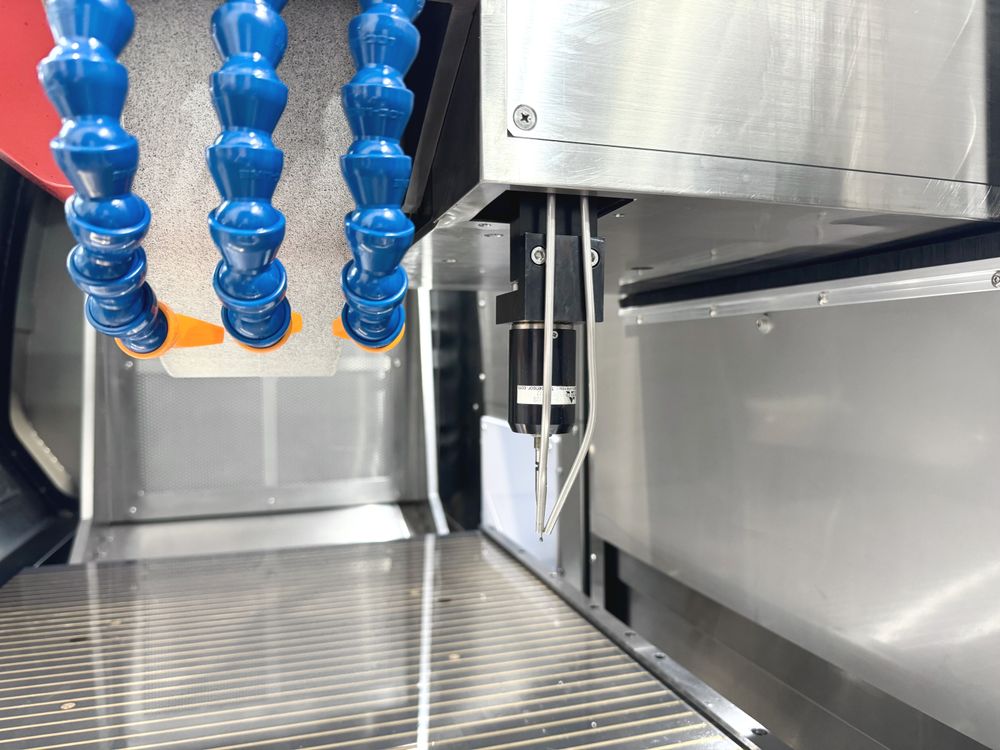

1x on-board measuring touch probe with compensation function

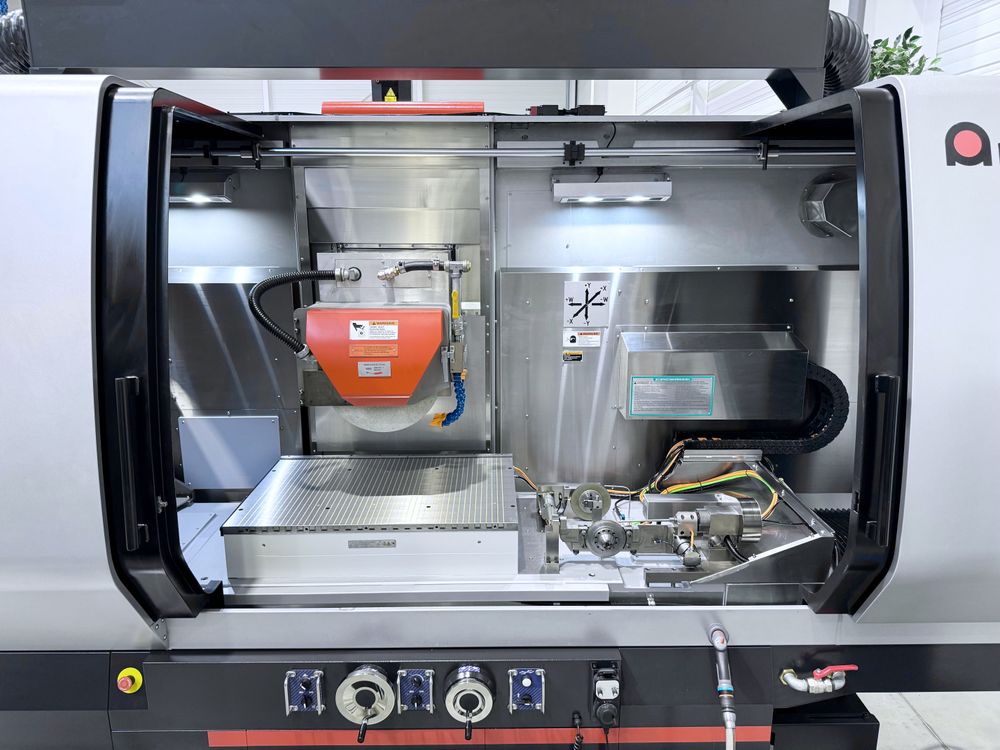

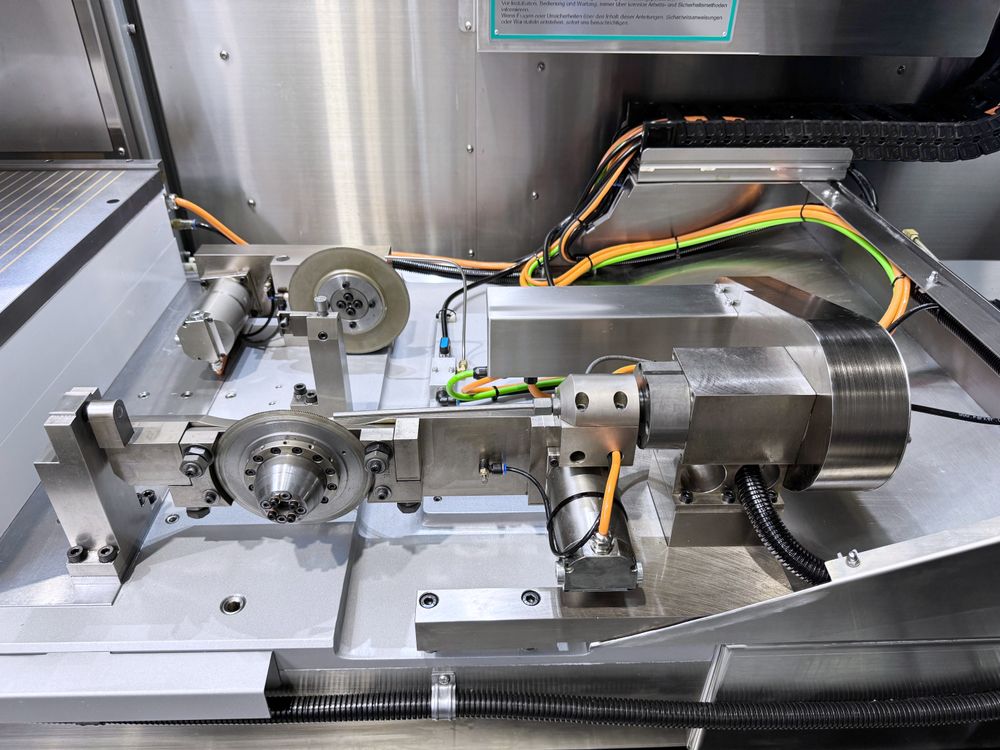

1x rotary dresser
1x NC swivelling rotary dresser
1x static straight dresser

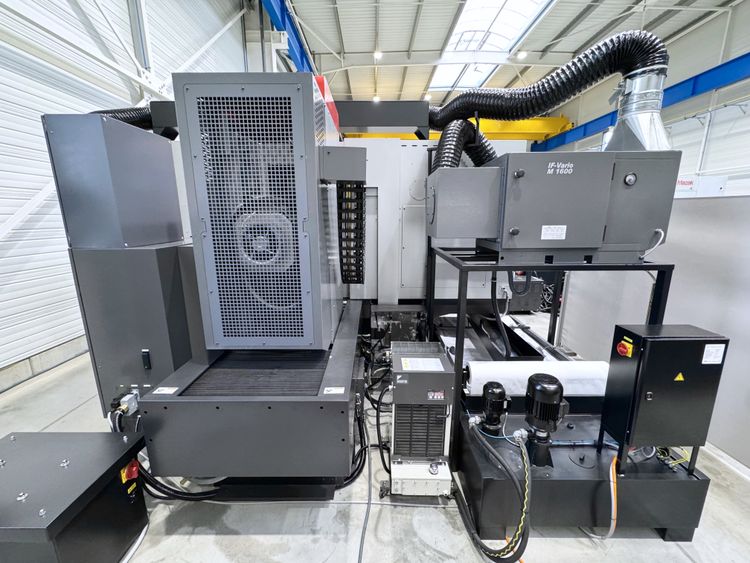

1x paper tape filtration unit
1x oil chiller, DAIKIN AKZ149-C
1x oil mist extractor, IFS type M 1600
3x wheel flanges
3x grinding wheels
1x axis clamping kit
1x toolbox (service wrenches)
1x balancing arbor
1x transformer
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
Machine similar to the brands Okamoto, Jones & Shipman, Jung, Favretto, Blohm, Studer; also consider cylindrical grinders, lathes, machining centers, milling machines.
