Amada Techster 84
EUROPE (Western and Northern)

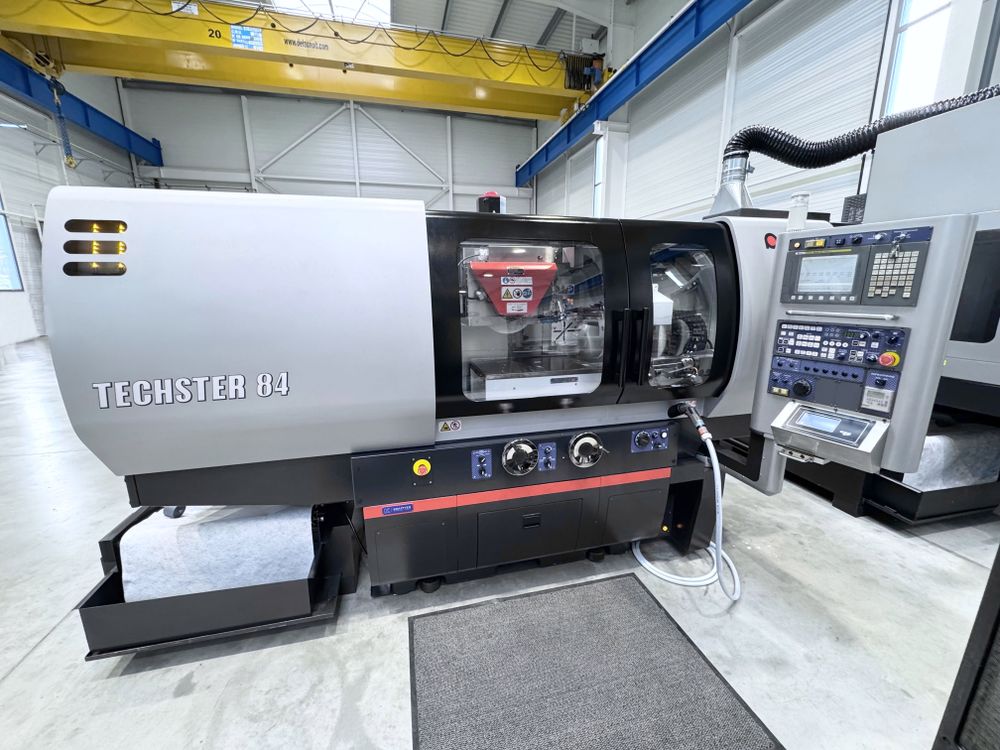

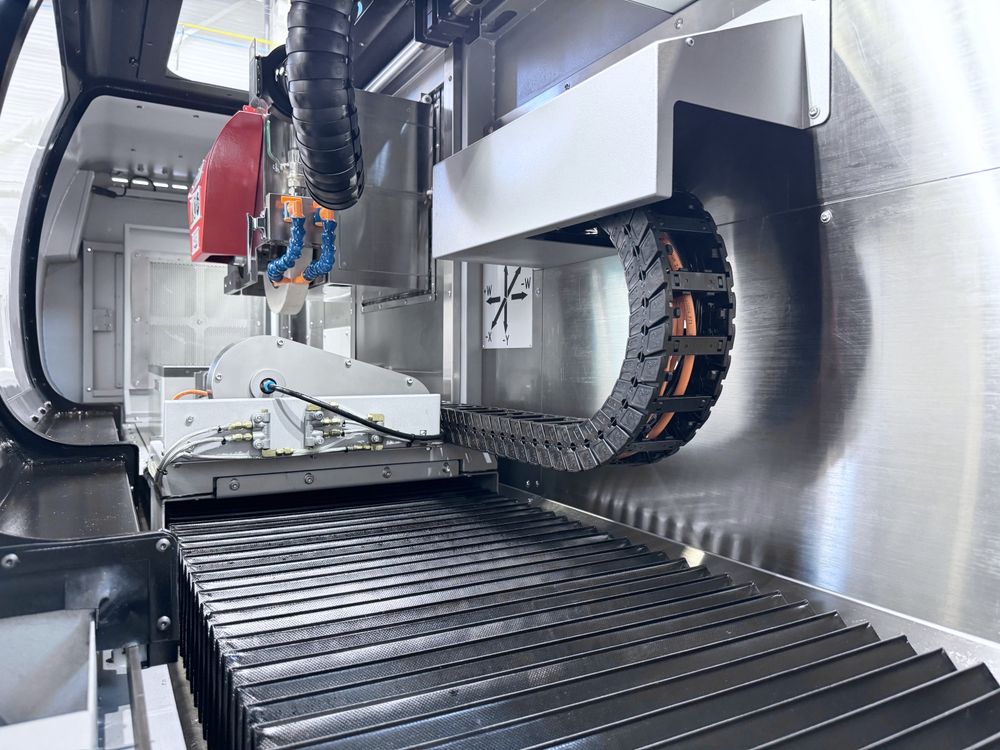

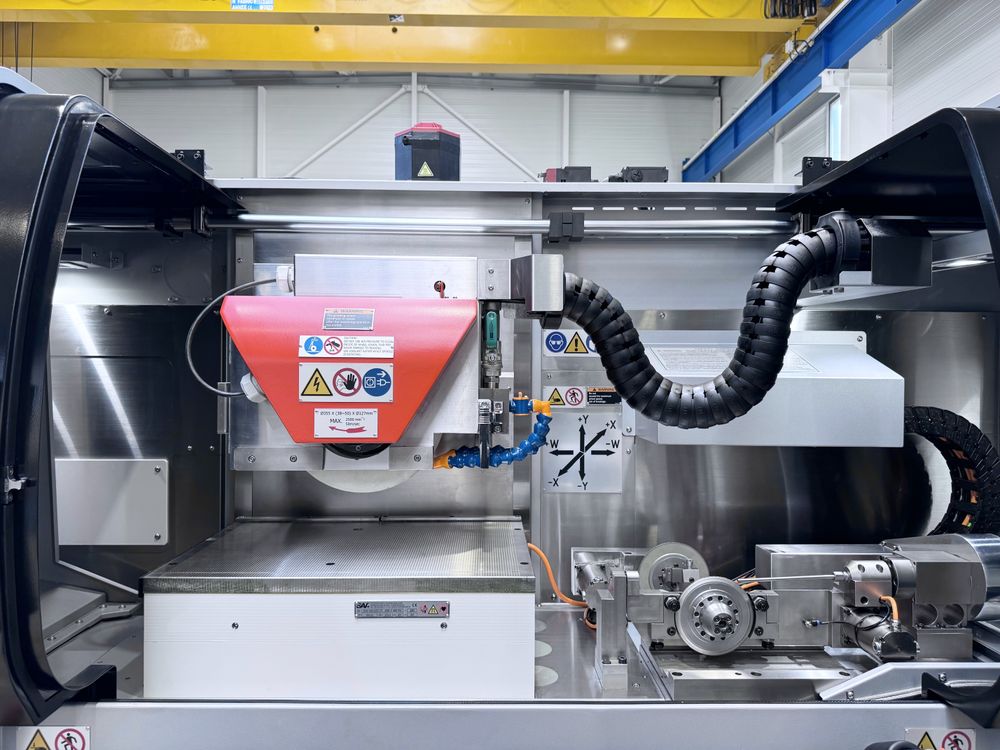

CNC Surface grinder AMADA Techster 84
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2014

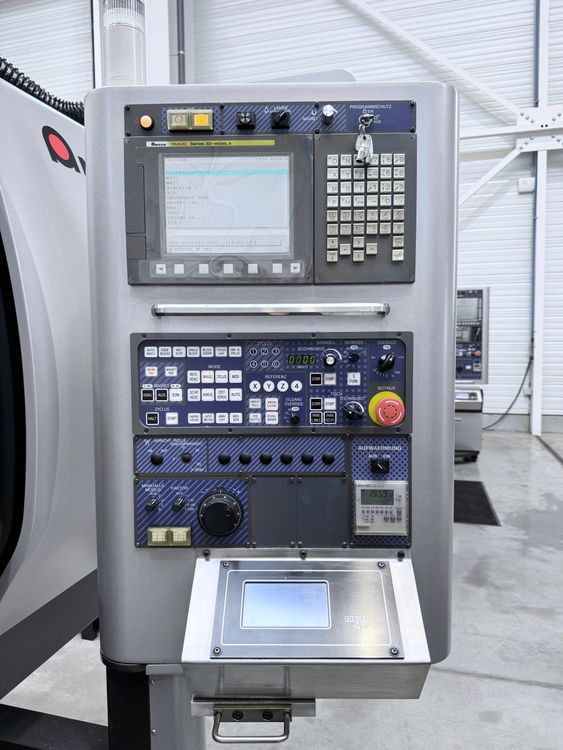

CNC control: FANUC series 32i-B
Maximum grinding lenght x width: 800 x 400 [mm]
W axis travel (longitudinal axis): 1000 [mm]
Min. Stroke speed W axis: 0.1 [mm/min]
Max. Stroke speed W axis: 40000 [mm/min]
X axis travel (transverse movement): 450 [mm]
Min. Stroke speed X axis: 0.1 [mm/min]
Max. Stroke speed X axis: 5000 [mm/min]
Resolution X axis: 0.0001 [mm]
Stroke Y axis (vertical movement): 500 [mm]
Min. Stroke speed Y axis: 0.1 [mm/min]
Max. Stroke speed Y axis: 500 [mm/min]
Resolution Y axis: 0.0001 [mm]
Max. distance spindle nose / table: 500 [mm]
Max. load on table: 1000 [Kg]
Min. grinding wheel speed: 300 [rpm]
Max. grinding wheel speed: 2500 [rpm]
Grinding spindle motor power: 7.5 [kW]
Max. diameter grinding wheel: 355 [mm]
Max. grinding wheel width: 50 [mm]
Grinding wheel bore: 127 [mm]
Number of running hours: 5675 [h]
Supply voltage: 400 [V]
Total power required: 23 [kVA]
Weight : 5000 [Kg]
EQUIPMENT / INCLUDED OPTIONS:
x1 SAV electro-magnetic chuck, type AH-243.73 P4 – dimensions: 600 x 400 [mm]
x1 automatic grinding wheel balancing device MPM, type BM50 + AB50.SM4

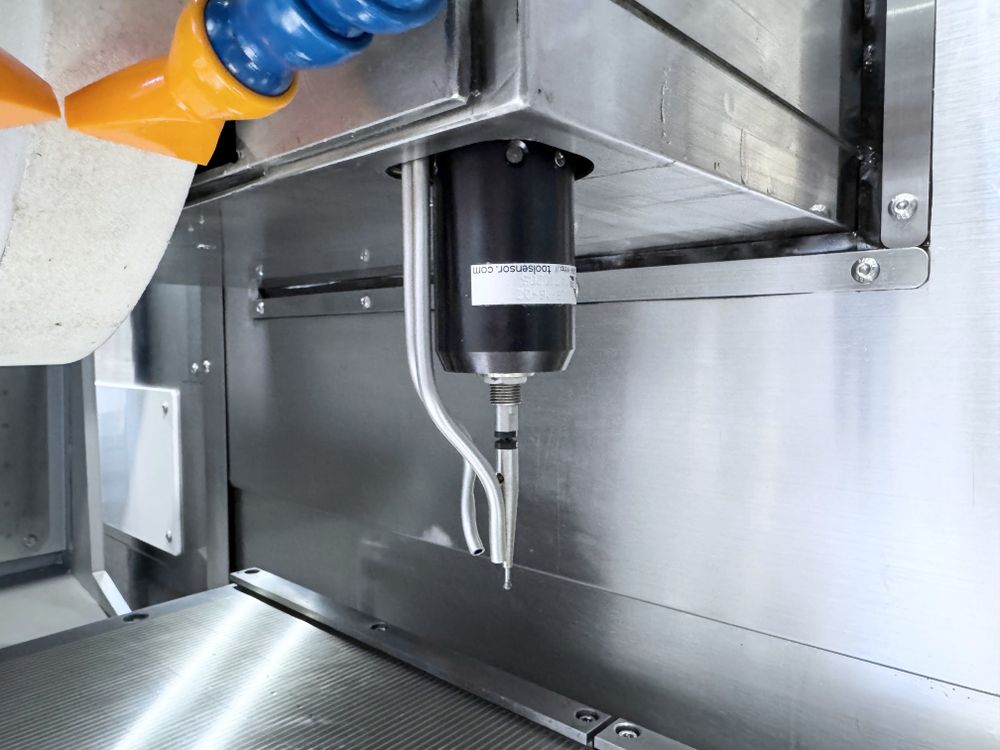

x1 automatic measuring probe with compensation function
1x rotary dresser

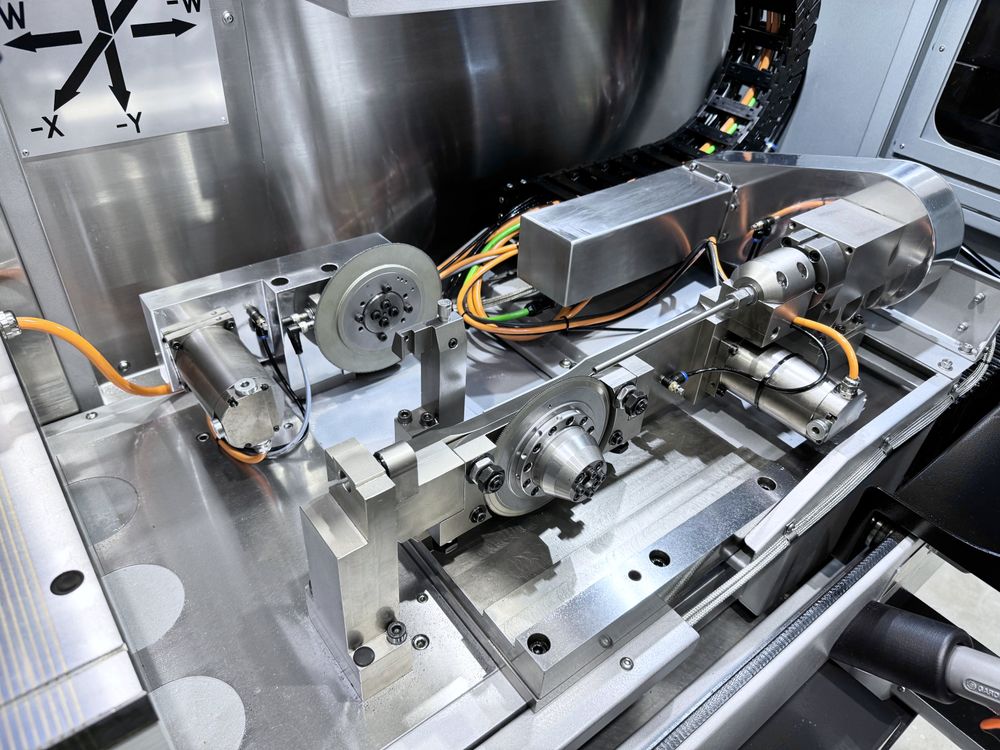

1x NC swivelling rotary dresser
1x static straight dresser
x2 linear glass scales on both X and Y axes

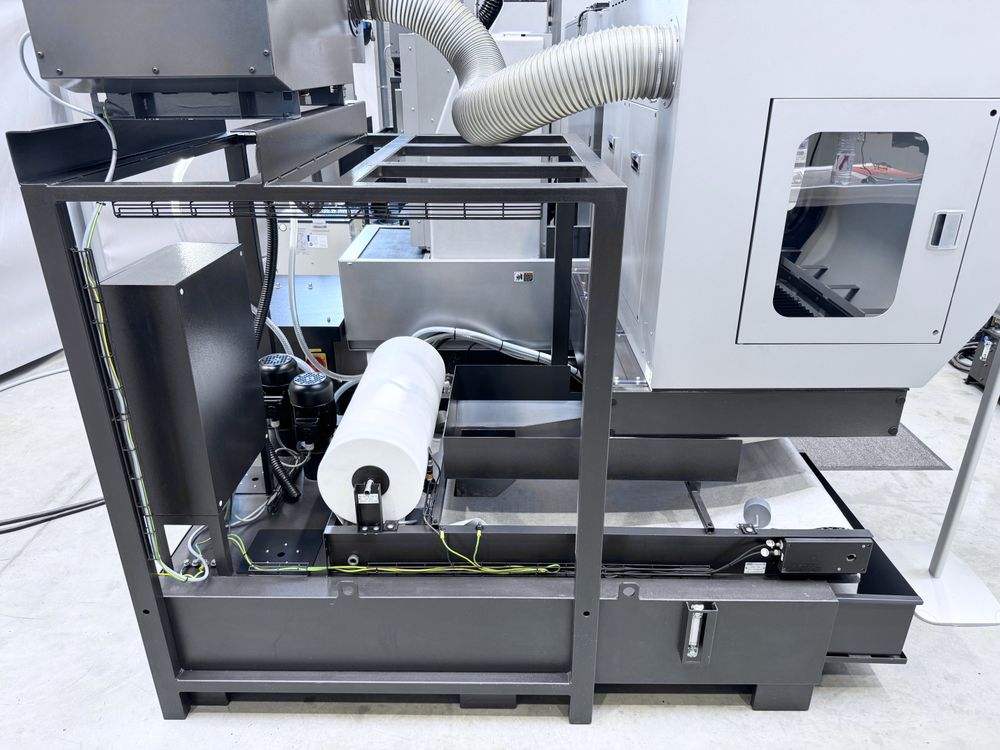

x1 paper tape filtration unit ARO TECHNOLOGIES AG, type PRA0025874
x1 oil chiller DAIKIN AKZ149M133
x1 oil mist extractor IFS, type IFMC 1100

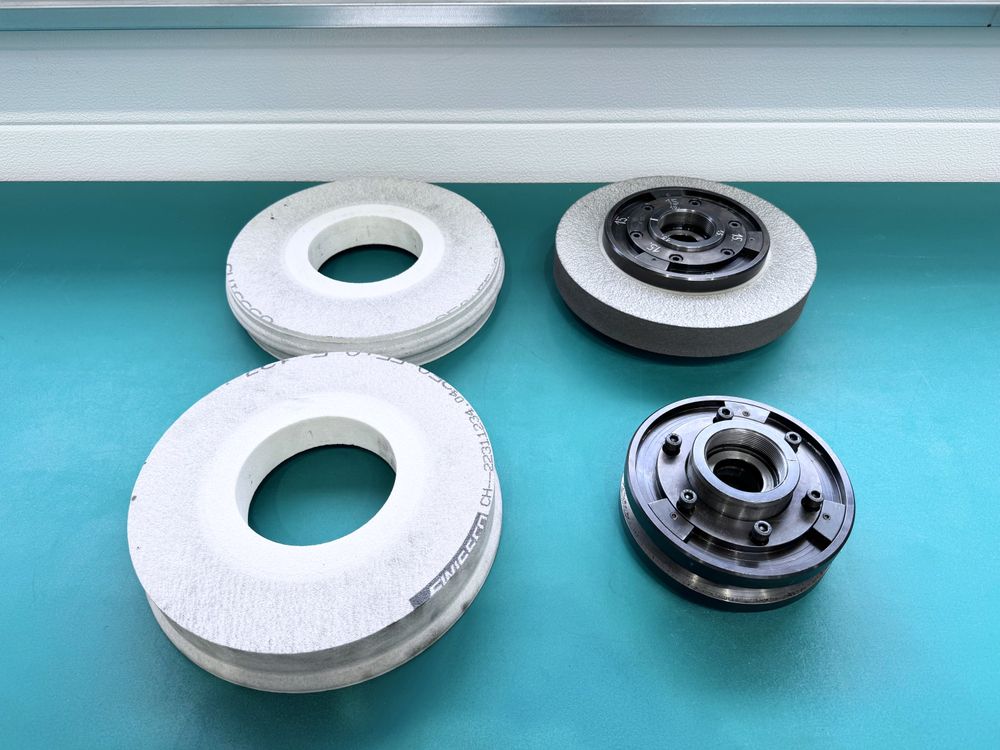

3x wheel flanges
x4 grinding wheels
x1 set of service tools (wrenches)
x1 transformer
x1 set of technical manuals
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
