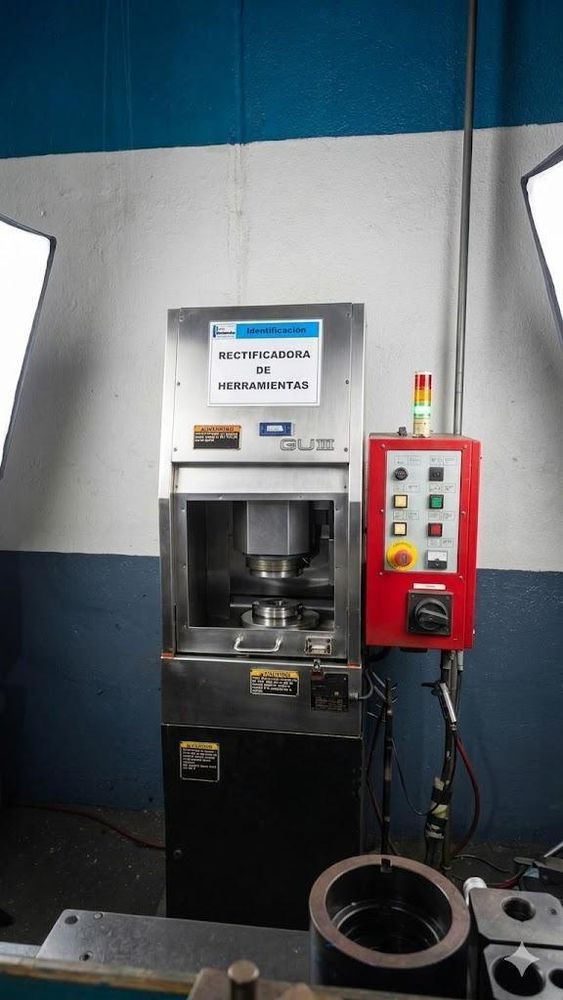

Amada TOGU-III

Maximum grinding amount: 0.099"
Maximum tool diameter: 6.299"
Minimum tool diameter: 0.059"
Maximum tool height: 5.906"
Standard grinding wheel diameter: 5.315"
Spindle motor: 1.5 kW
Spindle speed: 3000 RPM
Vertical travel distance: 9.449"
Vertical feed motor: DC servo motor
Jog feed speed: 11.811 IPM
Positioning speed: 1.1811 IPM
Grinding speed: 0.0023622 IPM
Table motor: 0.1 kW
Table rotating speed: 72 RPM
Coolant tank capacity: 8.90 gallons
Coolant pump motor: 0.06 kW
Supply voltage: 200 volts
Electric power consumption: 2.5 kVA
Dimensions: 33" x 34" x 76"
Weight: 1,100 lbs

6" diameter scroll-type three-jaw chuck
