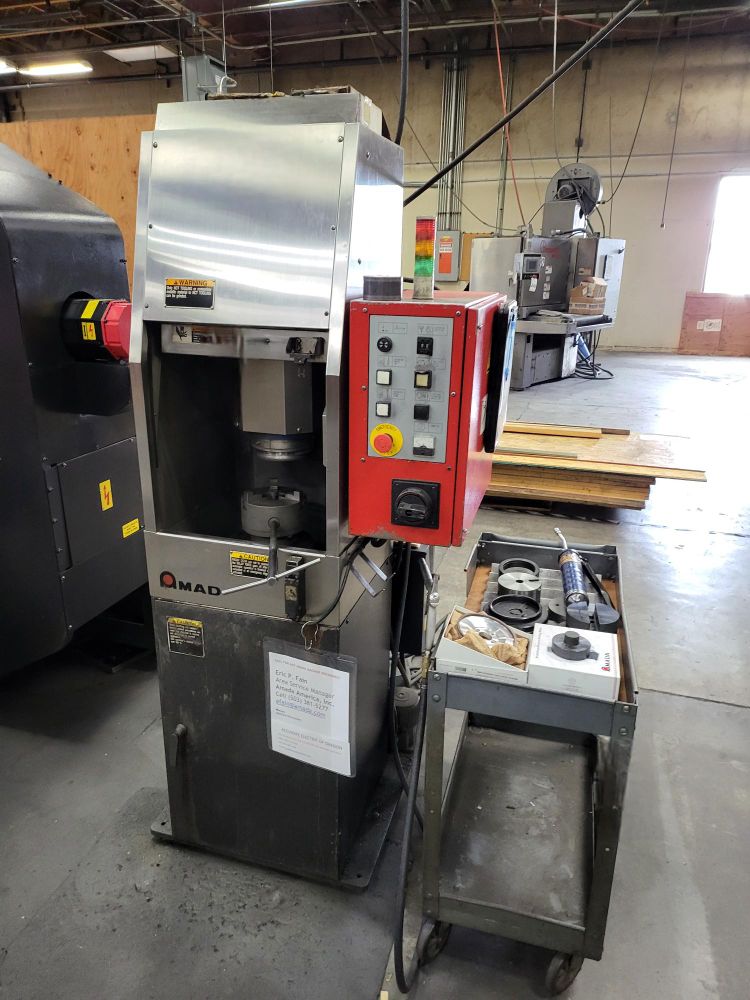

Amada TOGU III

Grinding Wheel: CBN Ø 5.31
Max Tool Diameter: Ø 6.30
Max Grinding Amount: 0.039"
Main Axis Motor: 2 HP
Main Axis Speed: 3000 RPM
Main Axis Travel: 9.45"
Main Axis Feed Motor: DC Servo 0.05 HP
Feed Speed High: 23.6 IPM
Feed Speed Medium: 2.36 IPM
Feed Speed Low: 0.002 IPM
Table Motor: 0.134 HP
Table Rotation Speed: 72 RPM
Coolant Pump Motor: 0.08 HP
Coolant Flow: 0.9 CFM
Power Supply: AC 220V 3 Phase 2.5 kVA
Air Requirement: 60 CFM
Machine Dimensions: 32.7" x 25.6" x 73.3"
Machine Weight: 1058 lb
Servo-controlled wet rotary grinding
High-precision automated grinding
Touch operation with preset grinding amount
Small footprint design
Jigs and sleeves included
