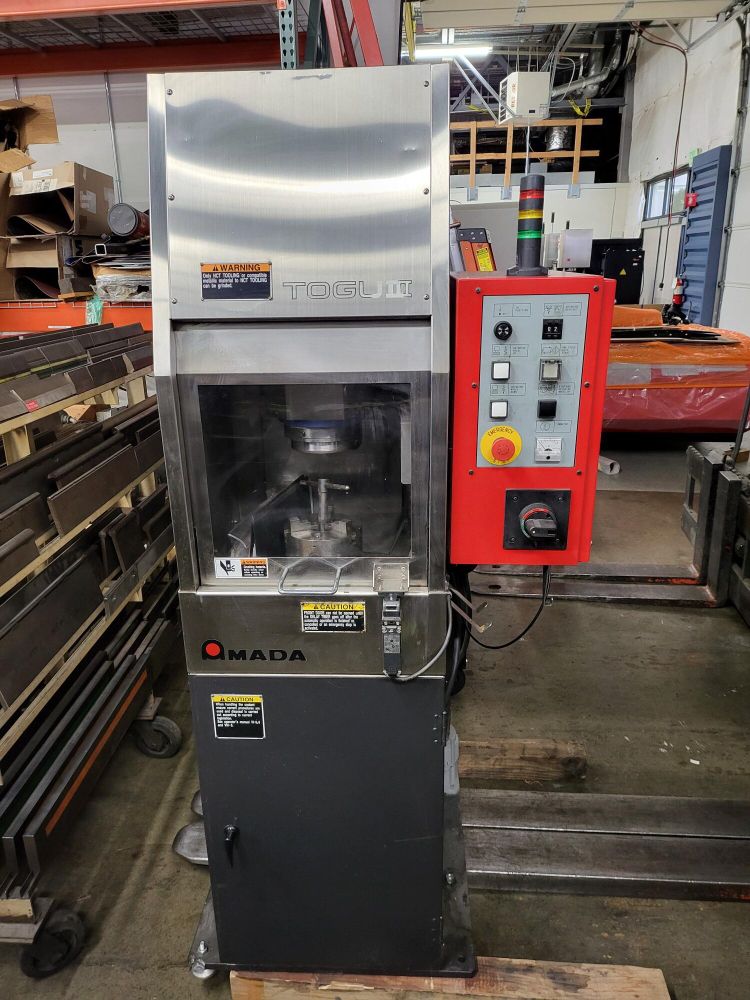

Amada TOGU III

Main axis travel: 9.45 in
Servo-controlled wet rotary grinding
Grinding wheel: CBN Ø 5.31
Max tool diameter: Ø 6.30
Max grinding amount: 0.039 in
Main axis motor: 2 HP
Main axis speed: 3000 rpm
Main axis feed motor: DC servo 0.05 HP
Main axis feed speed high: 23.6 IPM
Main axis feed speed middle: 2.36 IPM
Main axis feed speed low: 0.002 IPM
Table motor: 0.134 HP
Table rotation speed: 72 rpm
Cooling water pump motor: 0.08 HP
Cooling water flow: 0.9 CFM
Power supply: AC 220 V 3 phase 2.5 kVA
Air supply: 60 CFM
Machine dimensions: 32.7 x 25.6 x 73.3 in
Machine weight: 1058 lb
