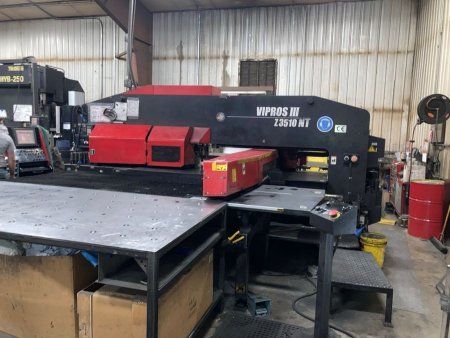

Amada VIPROS III Z3510NT 33 tons

Press capacity: 33 tons
Travel method: X and Y axes work piece movement
Control function: X, Y, T & C
Drive motors: Fanuc AC servo (X, Y, T, C)
Maximum sheet size without reposition: 98" x 50"
Maximum sheet size with one reposition: 196.85" x 50"
Maximum sheet thickness: 0.135"
Maximum material weight: 154 lbs
Max linear table speed X: 3934 ipm
Max linear table speed Y: 3149 ipm
Max linear table speed combined: 5039 ipm
Punching accuracy: ±0.0027"
Positioning accuracy: ±0.001"
Repeatability: ±0.001"
Press stroke: 1.772"
Stroke rate 0.079" pitch: 600 / 510
Stroke rate 1.000" pitch: 410 / 320
Maximum hole diameter: 4.5"
Tool type: Amada thick
Turret rotation speed: 33 rpm
Feed clearance: 0.984"
Auto index rotation speed: 60 rpm
Turret: 45 stations
Auto index stations: 4
Station 1/2": 24
Station 1-1/4": 12
Station 2": 2
Station 3-1/2": 1
Station 4-1/2": 2
Station 1-1/4" auto index: 2
Station 2" auto index: 2
Controller: Fanuc Series 180i-PB CNC
Input method: MDI
Input method: DNC
Minimum command unit X/Y: 0.001"
Minimum command unit C: 0.01"
Minimum travel unit X/Y: 0.001"
Minimum travel unit C: 0.01"
Operating mode: Automatic
Operating mode: MDI
Operating mode: Manual
Display mode: Program contents
Display mode: Position information
Display mode: Program check
Display mode: Parameters
Display mode: Tool hit counter
Display mode: Self-diagnostics
Interlock display: Oil temperature
Interlock display: Oil pressure
Interlock display: Door open
Brush table
Chiller
