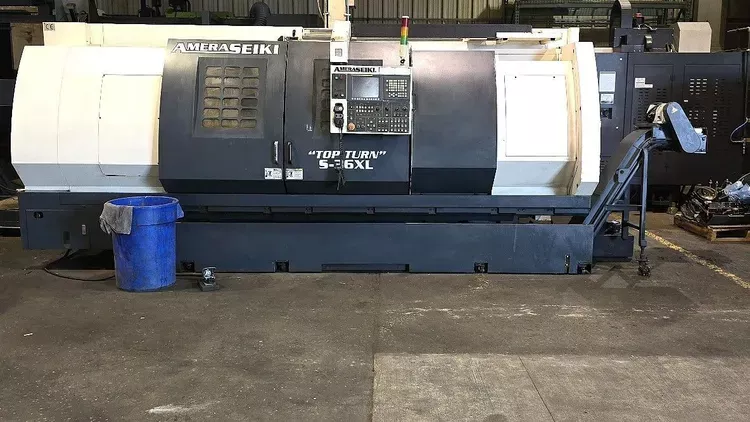

Amera Seiki Fanuc Oi-TD CNC control 1,200 RPM S-36XL 2 Axis

Swing over bed 30.7"
Maximum turning diameter 19.6"
Maximum turning length 86.6"
Distance between centers 88.5"
Spindle speed 1,200 RPM
Main spindle motor 35HP 2-Speed Gear Hi-Low
Spindle nose A2-11
Spindle bore 6.5"
Bar capacity 6.0"
Turret 12 positions
X-axis travel 12"
X-axis rapid traverse 945 ipm
Z-axis travel 92.5"
Z-axis rapid traverse 472.4 ipm
Hydraulic system 15.9 gallons
Coolant system 89.8 gallons
Coolant pressure 44 psi
Tailstock quill diameter 4.3"
Tailstock quill travel 3.9"
Tailstock quill taper MT#5
Fanuc Oi-TD CNC control
18" 3-jaw hydraulic strong chuck
Remote hand wheel/manual pulse generator
Side discharge chip conveyor
