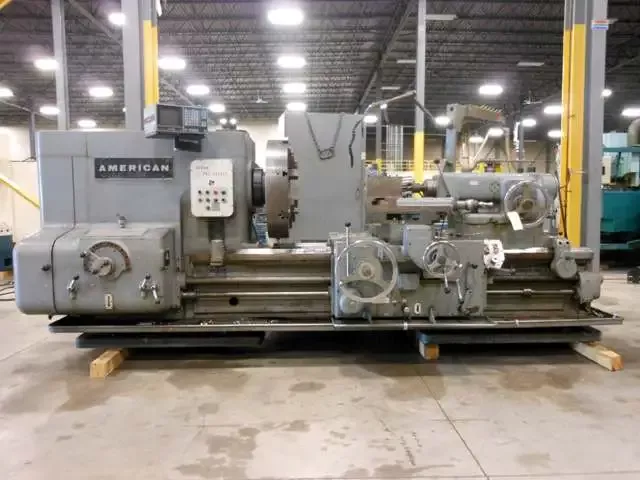

American Engine Lathe 750 rpm PACEMAKER STYLE H

31" 4-jaw chuck/face plate
ACU-RITE Turnvision 3-axis DRO
toolpost for boring bar
coolant with pump
tailstock with live center

swing over bed 39 3/4"
swing over carriage wings 36 1/2"
swing over cross slide 26"
centers 48"
spindle speeds 7.5–750 rpm
front bearing radial load capacity at 100 rpm 53,300 lbs
front bearing thrust load capacity at 100 rpm 47,700 lbs
center bearing radial load capacity at 100 rpm 29,300 lbs
spindle bore 2 7/8"
taper of center no. 6
bed width 25"
bed depth 20 3/4"
carriage length on bed 42"
carriage bearing area 296 sq in
carriage width on bridge 12"
number of threads that can be cut 60
thread range per inch 1/2–30
number of feeds 60
feed range per rev 0.004–0.240
leadscrew diameter 2 1/2"
leadscrew pitch 1/2"
top slide travel 6"
round tool holder size 1" x 2"
tool holder size no. 5
heavy duty tool holder size 1" x 2"
4-way tool block size 1 1/2" x 1 1/2"
tailstock spindle diameter 6"
tailstock spindle length 36 3/4"
tailstock set-over 1/8"
tailstock spindle travel 15"
tailstock taper MT 6
machine weight 21,500 lbs
machine dimensions 132" LR x 60" FB x 66" H
main motor 40 hp
electrics 440/3/60
