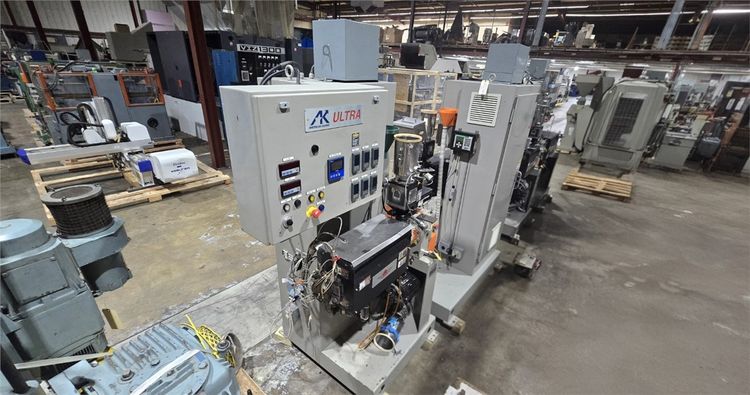

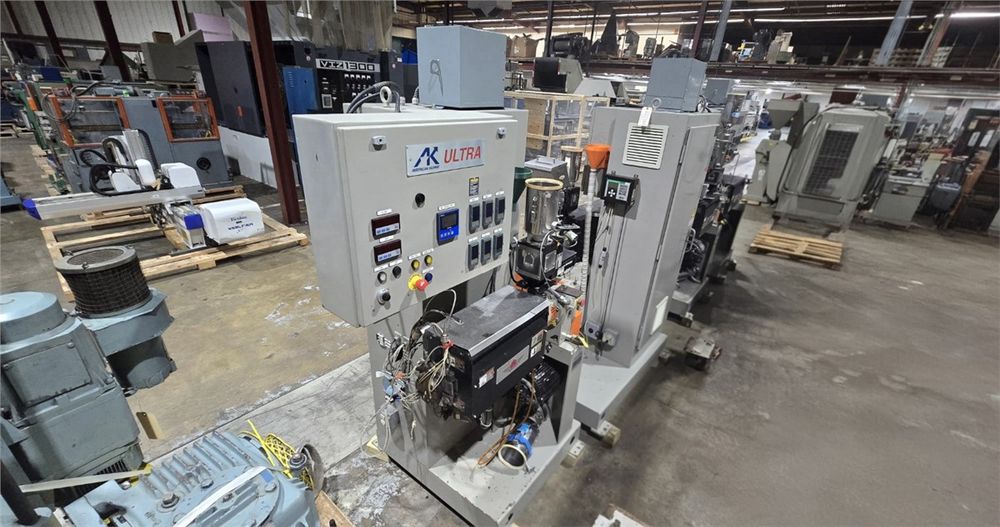

American Kuhne 1.0” Extruder

1.0” American Kuhne Extruder, 24:1 L/D Ratio
17.88:1 Koellmann UNEX 1.0 Gearbox, Rated To 10 HP
42” Centerline
Rectangular Feed Throat
Air-Cooled Barrel, 3 Barrel Zones, 3 Die Zones
Barrel Clamp Is Not Complete – Top Half Missing
Includes Screw
3 HP Marathon Blackmax Motor With Allen-Bradley Powerflex 753
AC Inverter Drive
30 AMP Main Disconnect, 23 FLA, 460/3/60
LOW HOURS 12,238 Hours Shown On Meter
Eurotherm 3208 Temperature Controllers
Approximate Dimensions: 56” L x 42” W x 94 H
