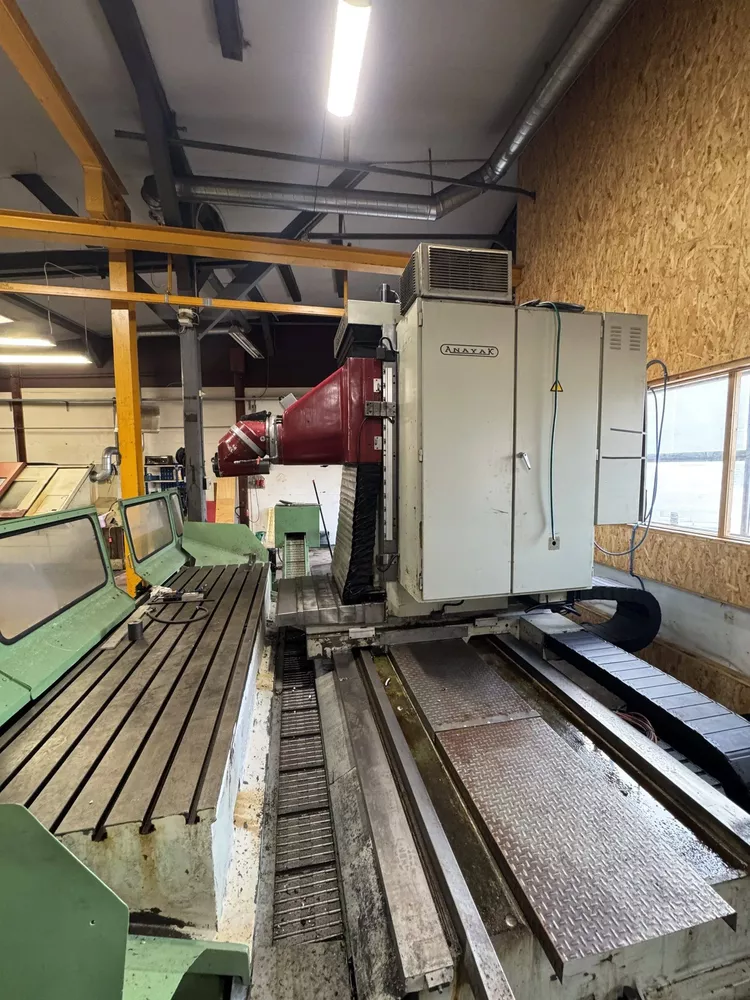

Anayak HVM-3300 4,000 rpm
Ref :
2767268-3-AW
Condition :
Used
Manufacturer :
Anayak
Model :
HVM-3300
Spindle Speed :
4,000 rpm
Year(s) :
1990
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 2,700 mm
Y-axis travel: 1,200 mm
Z-axis travel: 1,000 mm
Feedrate all axes: 2–10,000 mm/min
Rapid traverse all axes: 10,000 mm/min
CNC control: Heidenhain TNC 620
Table dimensions: 3,300 × 1,000 mm
Maximum table load: 5 t/m²
Spindle speed range: 20–4,000 rpm
Spindle motor power: 30 kW
Spindle taper: ISO 50
Tool holder standard: DIN 69871
Pull stud standard: DIN 69872 Form A
Tool changer capacity: 40 tools
Maximum tool diameter: 115 mm
Maximum tool diameter with free adjacent station: 200 mm
Maximum tool length: 350 mm
Maximum tool weight: 25 kg
Features / equipment
Vertical milling machine
Automatic indexing milling head
Indexing step 2.5° on both head axes
Automatic tool changer
Tool change in horizontal spindle position
