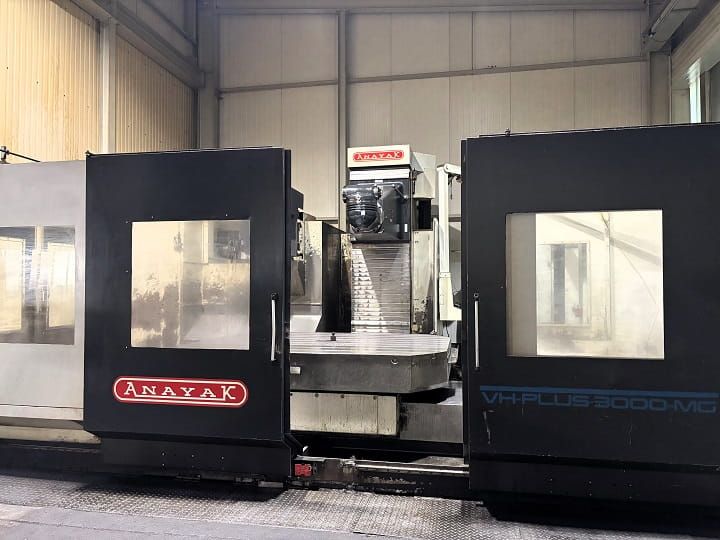

Anayak VH-PLUS 3000 N-MG 5000 rpm
Ref :
2790399-3-MT
Condition :
Used
Manufacturer :
Anayak
Model :
VH-PLUS 3000 N-MG
Spindle Speed :
5000 rpm
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X axis traverse: 3000 mm
Y axis traverse: 1500 mm
Z axis traverse: 1300 mm
Table continuous rotation with hydraulic brake
Control unit HEIDENHAIN TNC 530
Automatic tool changer 60 tools
Auto-indexing orthogonal head 90° (B & C axes, 1° indexing)
External coolant system
Internal high-pressure coolant through spindle
Spindle speed range: 20–5000 rpm
Spindle power: 30 kW
Feedrate rapid (X/Y/Z): 20000 mm/min
Tool taper ISO 50 (DIN 69871)
Pull stud DIN 69872
Hydraulic tool clamping system
Chip conveyor rear longitudinal
Paper strip coolant filter system
Electronic handwheel HR-410
Table dimensions: 2500 × 2000 mm
T slots: 9 × 22 mm
Machine weight: 39000 kg
Maximum table load: 13000 kg
Machine dimensions: 7980 × 8000 × 3750 mm
